ASCO SC8210G4-24V | 1N/C, 5/150air/wtr, 100oil, 13cv

Product Description

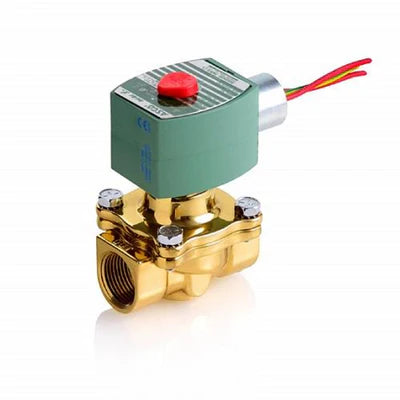

The ASCO SC8210G4-24V pneumatic solenoid valve provides control for airflow and media in various applications. This solenoid valve features a 1/4 inch port size, suitable for managing air or other media with pressure levels from 5 to 150 psi. Constructed with a brass body and stainless steel trim, it offers reliability and resistance to corrosion.

• N/C (normally closed) design allows immediate shut-off when de-energized
• Operates on 24V DC with low power consumption
• Handles air, water, and oil with maximum temperatures up to 100°F for oil and 13°C for air and water

Product Highlights

This valve is certified by CSA and complies with NEMA 4X standards, ensuring durability against water and dust.

Product Information

Standard Information

• Brand: ASCO
• Item Number: SC8210G4-24V

Technical Specifications

• Port Size: 1/4 inch
• Pressure Range: 5 to 150 psi
• Voltage: 24V DC
• Temperature for Oil: Maximum 100°F
• Temperature for Air/Water: Maximum 13°C
• Configuration: Normally Closed
• Construction: Brass body with stainless steel trim
• Weight: 4.4 lbs
