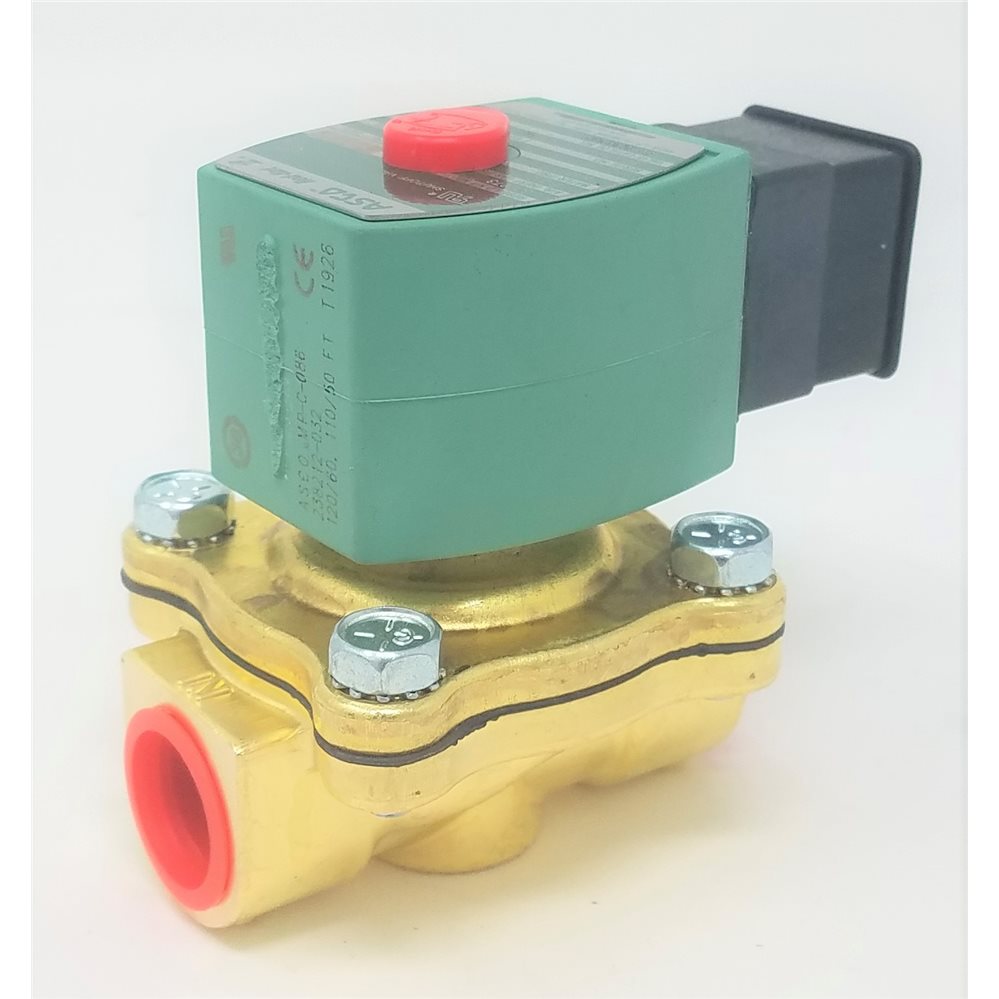

ASCO SC8210G002120/60110/50 1/2in 120v Solenoid Valve 5-150#

Product Description

The ASCO SC8210G002120/60110/50 is a 1/2 inch solenoid valve designed for a range of applications in fluid control. This valve operates on a voltage of 120 volts and is suitable for use with pressures ranging from five to one hundred fifty pounds per square inch.

• Suitable for air, water, and light oil applications.
• Normally closed operation for immediate shutoff when de-energized.
• Universal mounting direction for easy installation.

Product Highlights

This valve features a brass body and DIN housing type, which provide durability and reliability in various environments. Its compact size and efficient operation make it ideal for both commercial and residential use.

Product Information

Standard Information

• Brand: ASCO
• Part Number: SC8210G002120/60110/50

Technical Specifications

• Pipe Size: 1/2 inches
• Max (Air): 200 PSI
• Max (Water): 150 PSI
• Max (Light Oil): 135 PSI
• Watt Rating: 6.1 watts
• Inrush Current (VA): 40 VA
• Holding Current (VA): 16 VA
• Coil Voltage: 120/60 110/50
• Item Weight: 2.25 lbs per EA
• Orifice Size: 5/8 inches
• Min Fluid Temperature: 32 degrees Fahrenheit
• Max Fluid Temperature: 180 degrees Fahrenheit
