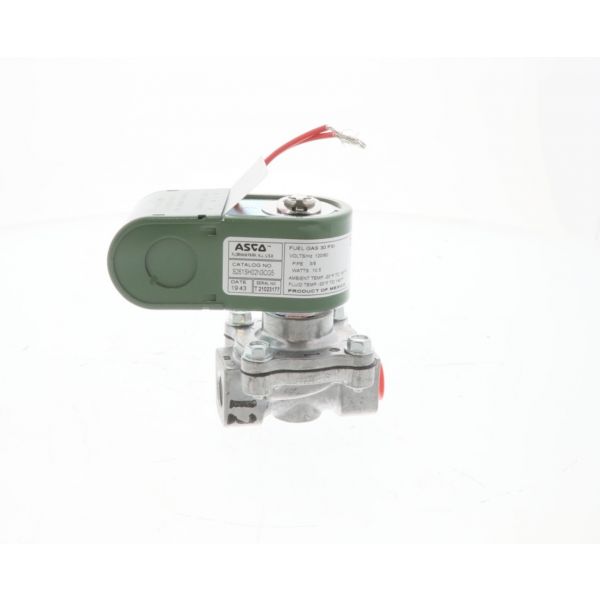

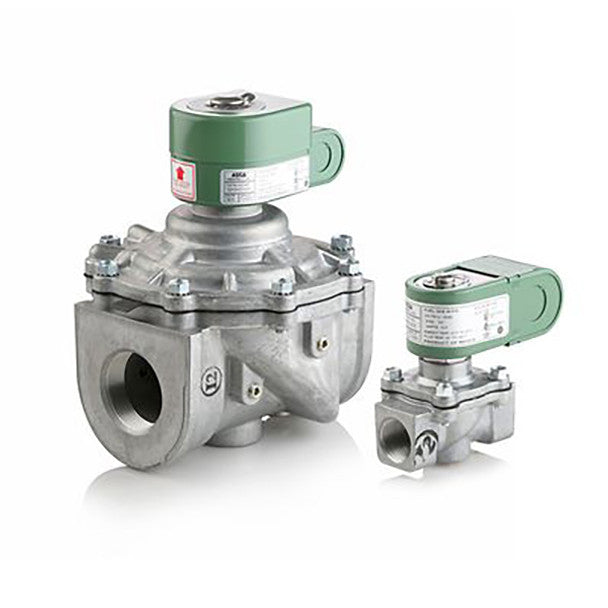

ASCO S261SH02N3CG5 3/8 Inch NC 0/30# Shutoff Valve 120V

Product Description

The ASCO S261SH02N3CG5 is a 3/8 inch NC (normally closed) shutoff valve, ensuring reliable control over fluid flow in systems with a 120V rating. This valve is essential for industrial applications, particularly in fluid management across various systems.

• Effective flow control for industrial systems
• Compact brass design, resistant to corrosion
• Operates at pressures from 0 to 30 psi

Product Highlights

Designed for low-pressure systems, the ASCO S261SH02N3CG5 offers robust performance with a Buna-N seat ensuring excellent seal integrity. Its compact structure allows installation in tight spaces, facilitating fail-safe operations and versatility across diverse applications.

Product Information

Standard Information

• Valve Type: 2-way solenoid valve
• Body Material: Brass

Technical Specifications

• Seat Material: Buna-N
• Orifice Size: 3/8 inch
• Flow Rate: Cv = 0.8
• Pressure Range: 0 to 30 psi
• Voltage: 120V AC
• Power Consumption: 12VA
• Connection: 1/8 inch NPT
• Electrical Termination: Spade terminals
• Operating Temperature: 0 to 140 degrees Fahrenheit
