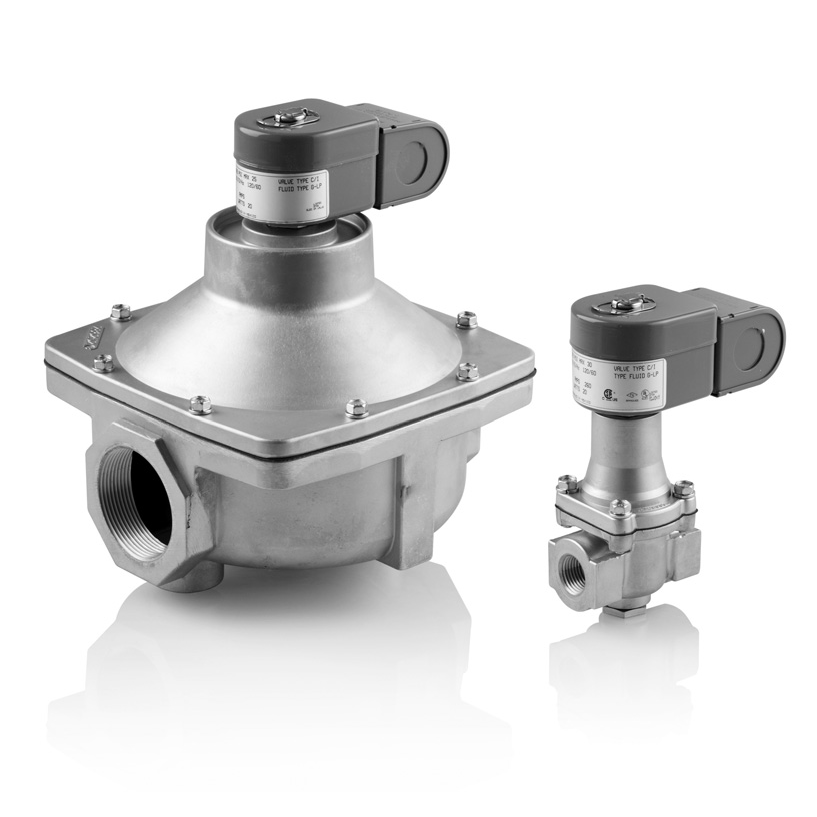

ASCO S261SG02N3CG5 .38 120 30 Psi NC Safety Shut Off Gas Valve

Product Description

The ASCO S261SG02N3CG5 is a safety shut off gas valve designed for reliable operation in gas applications. This valve operates at a pressure of thirty PSI, making it suitable for various gas control tasks. It is a normally closed, two-way valve that ensures safe operation for gas flow management.

• Pressure rating: 30 PSI
• Suitable for gas and air applications
• Vertical and upright mounting options

Product Highlights

This gas valve is equipped with a copper shading ring and features an aluminum body for durability. Its compact design and specifications make it ideal for HVAC, plumbing, and other trade applications.

Product Information

Standard Information

• Brand: ASCO
• Series: S261

Technical Specifications

• Max Air Pressure: 30 PSI
• Max Gas Pressure: 30 PSI
• Cv Rating: 5.3
• Pipe Size: 3/8 inches
• Coil Voltage: 120/60
• Coil Class: F
• Body Material: Aluminum
• Seat Material: NBR
• Mounting Direction: Vertical and Upright
• Gas Capacity (BTU/hr): 217,000
• Max Fluid Temperature: 77 degrees Fahrenheit
• Min Differential Pressure: 0 PSI
• Max Ambient Temperature: 175 degrees Fahrenheit
• Min Ambient Temperature: -20 degrees Fahrenheit
