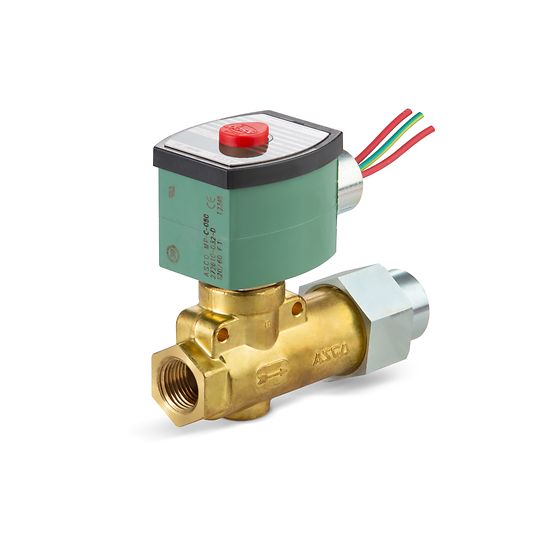

ASCO JB8266D077L120/60110/50 1/2in 120v Oil Valve 70# Max 1.8 Cv

Product Description

The ASCO Oil Valve, Model JB8266D077L120/60110/50, is a reliable solenoid valve designed for use in oil applications. This valve operates at 120 volts and has a maximum pressure rating of seventy pounds. It features a flow coefficient of 1.8, making it suitable for many industrial situations.

• Voltage: 120/60 or 110/50
• Pipe Size: Half inch
• Type: Normally Closed

Product Highlights

This oil valve is made with brass body and stainless steel seat for durability. It is ideal for applications that require precise control of oil flow. The valve is suitable for vertical and upright mounting, making it versatile for different setups.

Product Information

Standard Information

• Brand: ASCO
• Country of Origin: Mexico

Technical Specifications

• Max Fluid Temperature: 250
• Min Fluid Temperature: 32
• Orifice Size: 5/16
• Circuit Type: 2 Way
• Coil Voltage: 120/60 110/50
• Coil Class: F
• Inrush Current (VA): 160
• Holding Current (VA): 27
