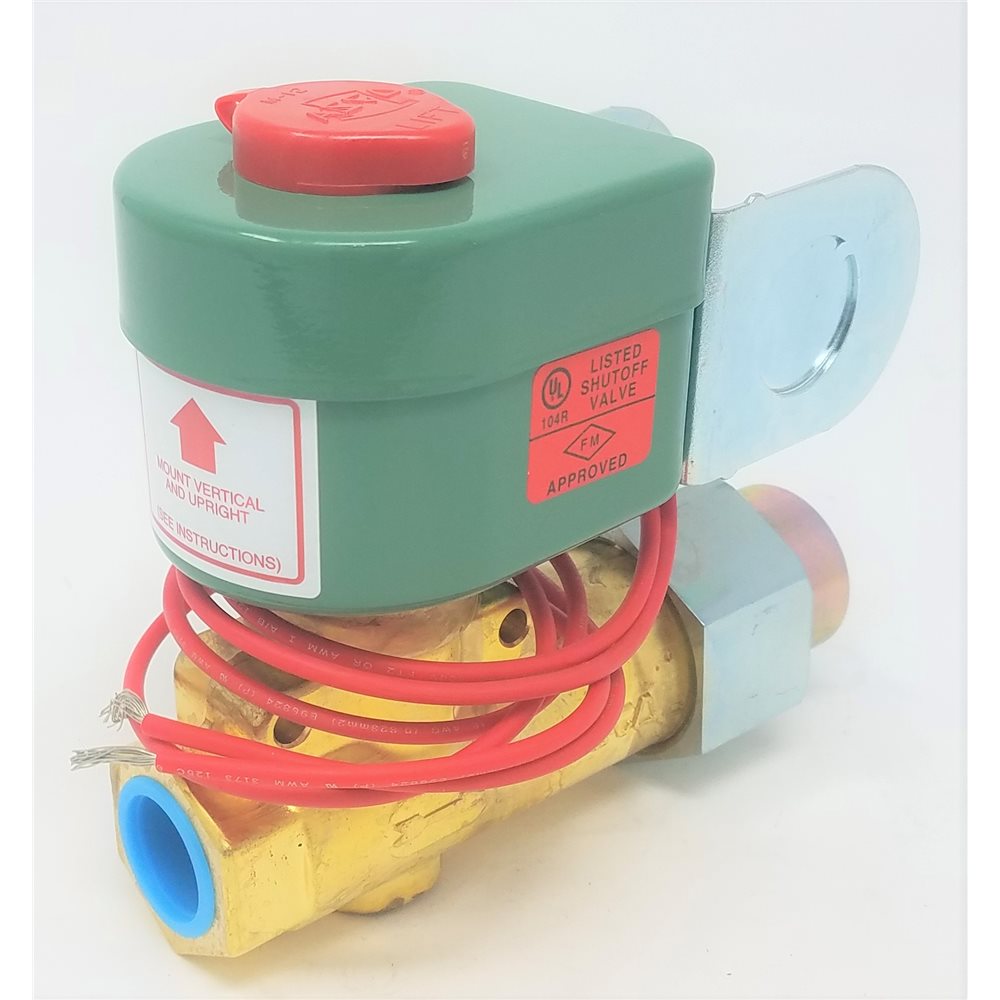

ASCO JB8266D061L120/60110/50 1/2in 120v Oil Valve 170# Max .78 Cv

Product Description

The ASCO JB8266D061L120/60110/50 is a half-inch, 120 volt oil valve designed for reliable operation in multiple applications. It operates with a maximum pressure of one hundred seventy pounds and features a flow coefficient of point seventy-eight. The valve is ideal for heating, oil, and other fluid systems.

• Standard pipe size of one half inch.
• Rated for maximum fluid temperature of two hundred fifty degrees.
• Nema 1 junction box housing type for easier installation.

Product Highlights

This product is built for durability and efficiency, making it a suitable choice for HVAC and plumbing professionals.

Product Information

Standard Information

• Brand: ASCO
• Part Number: JB8266D061L120/60110/50

Technical Specifications

• Coil Voltage: 120/60 110/50
• Type: 2 Way
• Mode: Normally Closed
• Body Material: Brass
• Seat Material: Stainless Steel
• Maximum Fluid Temperature: 250
• Minimum Fluid Temperature: 32
• Weight: 3.00 lbs per EA
