ASCO JB8266D001L120/60110/50 3/8in 120v Oil Valve 400# Max .34 Cv

Product Description

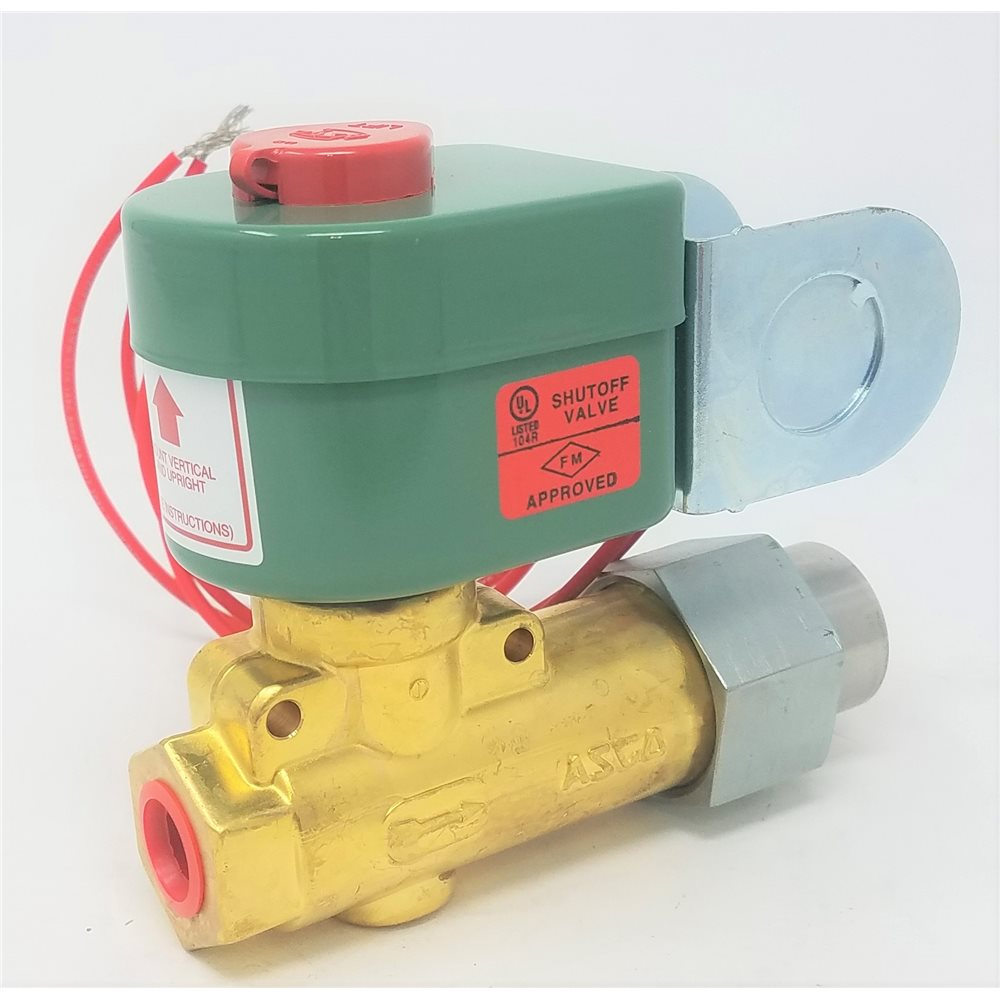

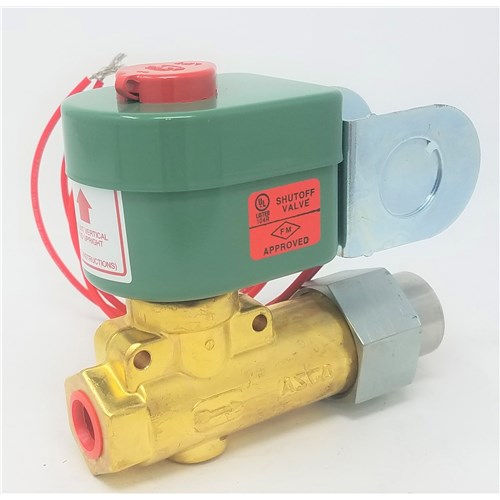

The ASCO JB8266D001L120/60110/50 is a 3/8 inch, 120 volt oil valve capable of handling a maximum of four hundred pounds and a flow coefficient of .34. This model is ideal for HVAC systems and applications requiring reliable fluid control. The valve features a normally closed design for added safety.

• Max fluid temperature: 250 degrees Fahrenheit
• Voltage: 120/60 110/50
• Body Material: Brass with stainless steel seat

Product Highlights

This oil valve is essential for effective fluid management in heating systems. Its robust materials ensure durability throughout operation.

Product Information

Standard Information

• Item Weight: 3.00 lbs per EA
• Coil Class: F

Technical Specifications

• Pipe Size: 3/8 inches
• Type: 2 Way
• Max Fluid Temperature: 250 degrees Fahrenheit
• Min Fluid Temperature: 32 degrees Fahrenheit
• Max Ambient Temperature: 95 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
• Lead Length: 18 inches
• Orifice Size: 1/8 inches
