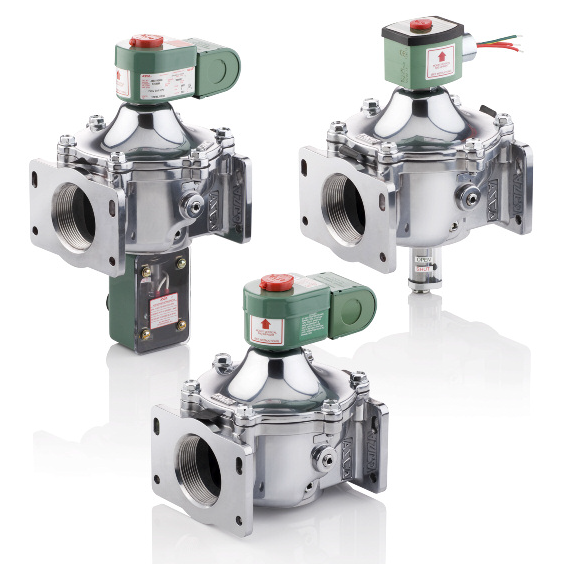

ASCO JB8214285CCSA120/60 2in 120v Gas Valve w/ POC

Product Description

The ASCO JB8214285CCSA120/60 is a 2-inch gas valve designed for reliable performance in various applications. This valve operates at a voltage of one hundred twenty with a frequency of sixty hertz. It features proof of closure and visual indication options for enhanced safety and monitoring.

• Designed with a two-way functionality.
• Supports a maximum gas and air capacity of five.
• Ideal for use in vertical and upright mounting.

Product Highlights

This gas valve is suitable for HVAC systems and industrial applications requiring precise control of gas flow.

Product Information

Standard Information

• Brand: ASCO
• MPN: JB8214285CCSA120/60

Technical Specifications

• Series: 8214
• Type: 2 Way
• Mode: Normally Closed
• Pipe Size: 2 inches
• Inrush Current (VA): 240
• Holding Current (VA): 43
• Gas Capacity (BTU/hr): 4,044,100
• Max Fluid Temperature: 125 degrees Fahrenheit
• Min Ambient Temperature: -40 degrees Fahrenheit
• Max Ambient Temperature: 125 degrees Fahrenheit
• Body Material: Aluminum
• Seat Material: NBR
• Coil Class: F
• Watt Rating: 20
• Coil Voltage: 120/60
• Coil Number: 222345-009-D
• Lead Length: 18 inches
• Shading Ring: Copper
• Orifice Size: 3 inches
• Mounting Direction: Vertical and Upright
• Item Weight: 6.20 lbs per each
• Max Differential (PSI): 0
• Max (Air): 5
• Max (Gas): 5
