ASCO JB8214250CSA120/60110/50 1in 2W Normally Closed 120V

Product Description

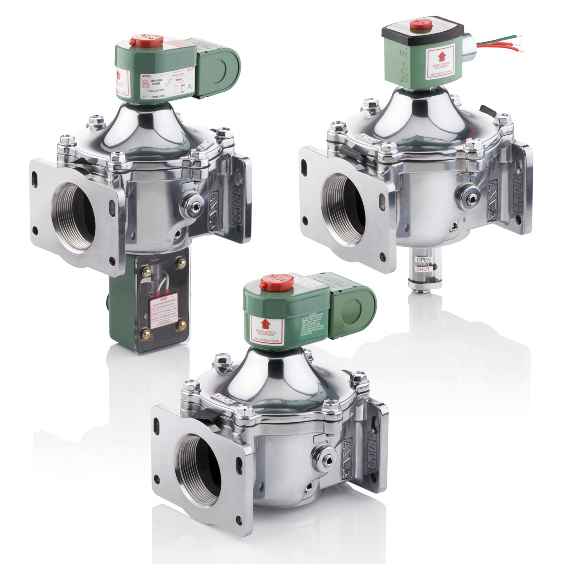

The ASCO JB8214250CSA120/60110/50 is a 1-inch two-way normally closed solenoid gas valve designed for reliable operation in various applications. It operates at a coil voltage of 120 volts and is suitable for both gas and air services. This valve is efficient for controlling gas flow in systems requiring precise regulation.

• Pipe Size: One inch
• Gas Capacity: 1,132,300 BTU/hr
• Max Air Pressure: 5 PSI

Product Highlights

This valve features an aluminum body, making it lightweight and durable. The design allows for vertical and upright mounting options.

Product Information

Standard Information

• Brand: ASCO
• MPN: JB8214250CSA120/60110/50

Technical Specifications

• Mode: Normally Closed
• Type: 2 Way
• Series: 8214
• Coil Class: F
• Lead Length: Eighteen inches
• Watt Rating: Twenty watts
• Coil Voltage: 120/60 110/50
• Housing Type: Nema 1 Junction Box
• Gas Capacity (BTU/hr): 1,132,300
• Max Fluid Temperature: 125 degrees
• Max Ambient Temperature: 125 degrees
• Min Ambient Temperature: -40 degrees
• Inrush Current (VA): 240
• Holding Current (VA): 43
• Orifice Size: 1-5/8 inches
• Body Material: Aluminum
• Seat Material: NBR
• Shading Ring: Copper
• Mounting Direction: Vertical and Upright
• Rebuild Kit Number: 323632
