Product Description

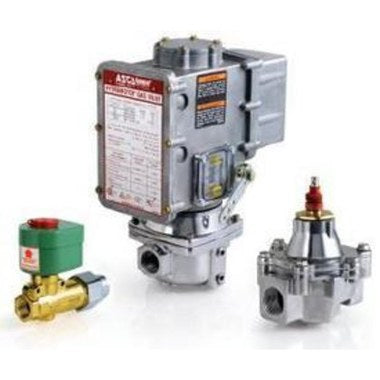

The ASCO HV216585005 Gas Shutoff Valve is designed for various industrial applications. This 2-inch valve is normally closed and constructed from durable aluminum.
- 2-inch NPT end connection
- Aluminum body material
- Normally closed operation
Product Highlights
This ASCO HV216585005 valve offers reliable performance with its aluminum construction and watertight enclosure. It is suitable for high-flow applications, providing precise fluid control in industries such as chemical processing, manufacturing, and water treatment.
Product Information
Standard Information
-
Item: Gas Shut-off Valve
-
Brand: ASCO
Technical Specifications
-
Control Method: Cable Release to Close
-
Configuration: Normally Closed
-
Pipe Size: 2 inches
-
Orifice Diameter: 2-3/32 inches
-
Cv Flow Factor: 54
-
PSI Differential Min: 0
-
PSI Differential Max: 5
-
Valve Design: 2-Way
-
Body Material: Aluminum
-
Disc Material: NBR
-
Height: 7-3/16 inches
-
Width: 6-5/16 inches
-
Max Fluid Temperature: 132 Degrees F
-
Seal Material: NBR
-
Spring Material: 302 Stainless Steel
-
Standards: UL Component listed
-
Tube Material: 430F Stainless Steel
