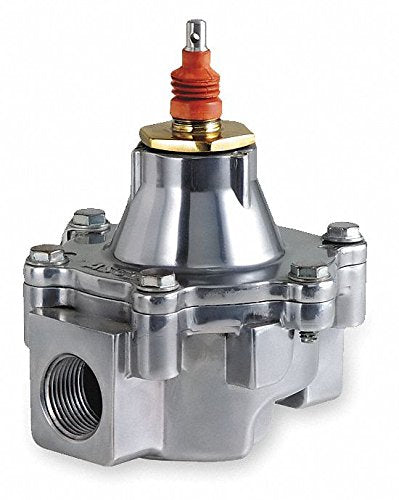

Asco HV216585004 Gas Shut-Off Valve 38 Cv Flow Factor 1-1 2 Inches

Product Description

The Asco HV216585004 gas shut-off valve ensures safety and efficiency in gas systems. This valve features a cable release control method to close configuration and it is normally closed. Ideal for various gas shut-off applications.

• Body material: Aluminum
• Disc material: NBR
• Pipe size: 1-1/2 inches

Product Highlights

This gas shut-off valve is designed with a 38 Cv flow factor and operates with a minimum PSI differential of 0 and a maximum of 5. The valve design is 2-way, making it reliable for gas control. Built with durable materials such as aluminum for the body and NBR for the disc.

Product Information

Standard Information

• Product Type: Gas Shut-off Valve
• Standards: UL Component listed

Technical Specifications

• Height: 7 3/16 inches
• Width: 5 3/8 inches
• Pipe Size: 1 1/2 inches
• Orifice Diameter: 1 5/8 inches
• Cv Flow Factor: 38
• Max. Fluid Temp.: 132 degrees F
• Body Material: Aluminum
• Disc Material: NBR
• Seal Material: NBR
• Spring Material: 302 Stainless Steel
• Tube Material: 430F Stainless Steel
• Control Method: Cable Release to Close
• PSI Differential Min.: 0
• PSI Differential Max.: 5
