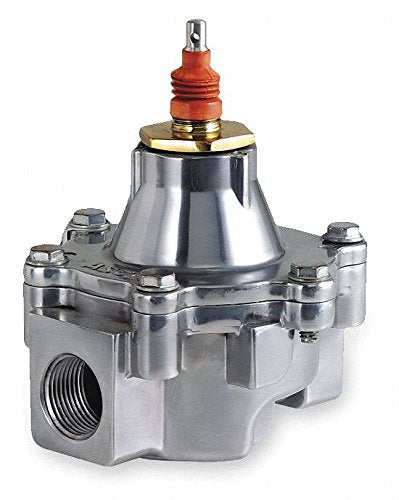

CAI - ASCO HV216585003 Gas Shutoff Valve, Cable Release, 1 1/4 In

Product Description

The CAI - ASCO HV216585003 is a gas shut-off valve designed with a cable release mechanism. Its configuration is normally closed, making it suitable for gas shut-off applications. The valve features a pipe size of one and one-fourth inches and an orifice diameter of one and five-eighths inches.

• Cable release control method for ease of use
• Constructed from durable aluminum for longevity
• UL component listed for safety assurance

Product Highlights

This gas shut-off valve is efficient for controlling gas flow in plumbing systems. It is designed to meet stringent safety standards and is suitable for a variety of applications.

Product Information

Standard Information

• Product Type: Gas Shut-off Valve
• Configuration: Normally Closed

Technical Specifications

• Pipe Size: 1 1/4 inches
• Orifice Diameter: 1 5/8 inches
• Cv Flow Factor: 34
• Max Fluid Temperature: 132 Degrees F
• Body Material: Aluminum
• Disc Material: NBR
• Seal Material: NBR
• Spring Material: 302 Stainless Steel
• Tube Material: 430F Stainless Steel
• PSI Differential Min: 0
• PSI Differential Max: 5
• Height: 7 3/16 inches
• Width: 5 3/8 inches
