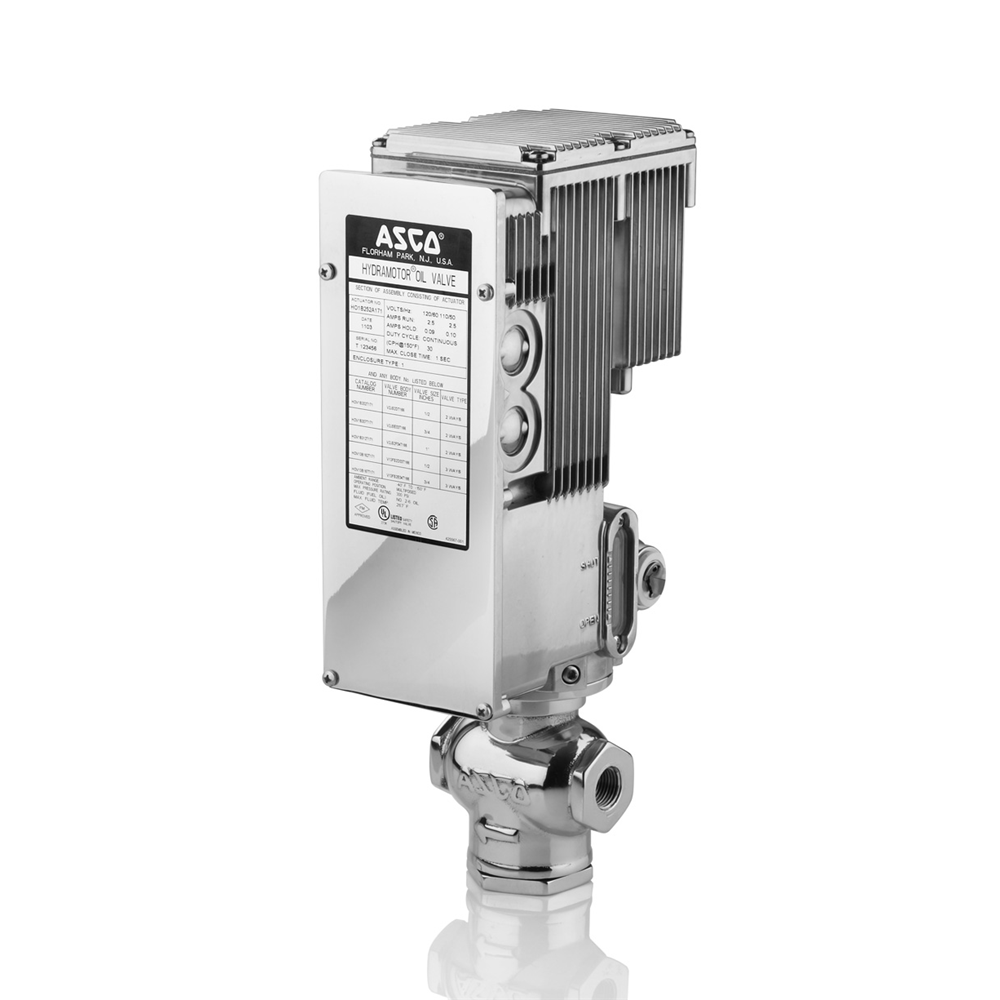

ASCO HOV2B302T171 1/2in 2way Oil Shutoff w/ FM POC - Nema4

Product Description

The ASCO HOV2B302T171 is a reliable 1/2 inch two-way oil shutoff valve with FM POC and is rated Nema 4. This valve is designed for controlling oil flow in various applications, ensuring efficient operation and safety.

• Voltage rating of 120/60 and 110/50
• Maximum fluid temperature of two hundred sixty-seven degrees Fahrenheit
• Inrush current capacity of five point six amps

Product Highlights

This oil shutoff valve handles pressures from zero to three hundred psi, making it suitable for demanding tasks.

Product Information

Standard Information

• Brand: ASCO
• Part Number: HOV2B302T171

Technical Specifications

• Cv: 4.5
• Actuator: HO2B252A171
• Pipe Size: 1/2 inches
• Valve Body: V2JS2DT166
• Enclosure Type: Nema 4, Nema 3R
• Holding Current: 0.09A
• Opening Current: 2.1A
• Ambient Temperature: -40 to 150 degrees Fahrenheit
• Max Operating Pressure: 300
• Min Operating Pressure: 0
