ASCO HOV1B307T171 Oil Shut-Off Solenoid Valve

Product Description

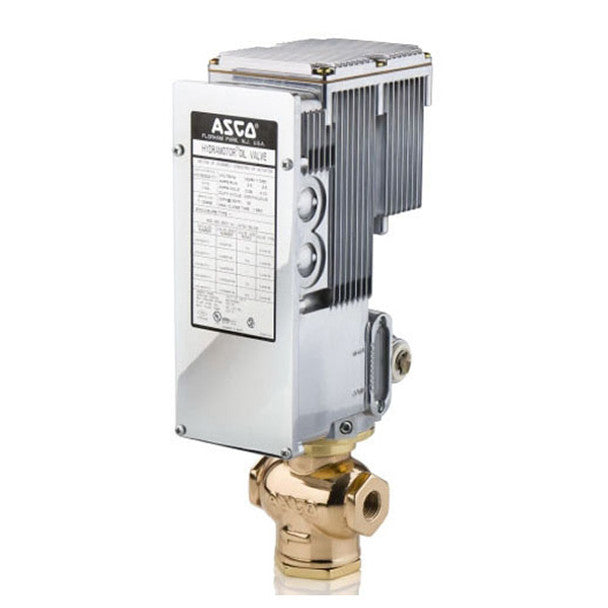

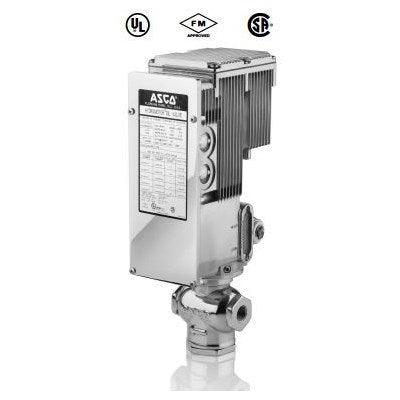

The ASCO HOV1B307T171 is a two-way, two-position solenoid valve for oil shut-off applications. This valve is constructed with a durable bronze body and has three-quarter inch NPT threaded connections. It is designed to operate efficiently at pressures ranging from zero to three hundred PSI and works on one hundred twenty volt AC power at sixty hertz. This solenoid valve is suitable for general use and features a NEMA 1 enclosure.

• Material: Bronze
• Voltage: 120 VAC
• Function: Oil shut-off

Product Highlights

Product Information

Standard Information

• Body Material: Bronze
• Input Voltage: 120 VAC 60 Hz

Technical Specifications

• Port Connection: 3/4 in. Threaded x 3/4 in. Threaded
• Pressure Rating: 0 to 300 PSI
• Product Family: Series HOV1B
• Temperature Rating: 267 °F (Fluid)
• Valve Position: Normally Closed (NC)
• Enclosure Rating: NEMA 1
• Product Type: Solenoid Valves
• Function: 2-Way/2-Position, Oil Shut-Off
• Port Configuration: 2-way
• Approval: UL
