Product Information
Description:

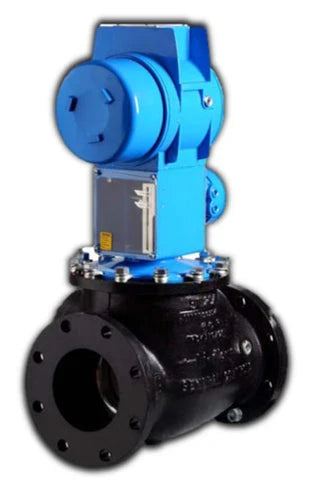

The normally closed H118 is a combination Hydramotor actuator and safety shutoff/control gas valve. It is used for commercial and industrial burners in applications such as furnaces, dryers, dehydrators, conversion burners and heaters. The cast iron, globe-type valve body features a soft synthetic seat and integral heavy-duty return spring for tight and certain closure in one second or less upon current interruption. The self-contained, hermetically sealed, pull-type electrohydraulic actuator consists of a motor/pump unit immersed in oil, reducing wear and providing highly reliable operation.
Specifications:
Standard Trim, Type 1 General Purpose Enclosure
Pipe Size: 2 1/2in
Flow Factor: 86cv
Gas Capacity: 3730
Operating Pressure Min: 0psi
Operating Pressure Max: 15psi
Max Flued temp.: 150F
