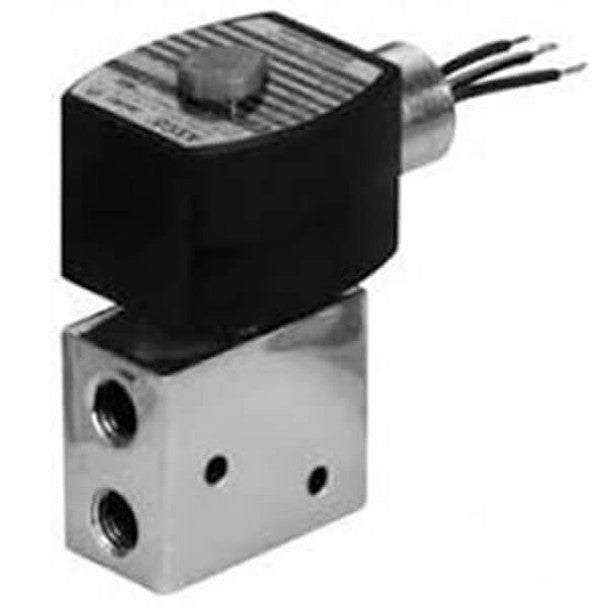

ASCO EV8327G042 24DC 3-Way Stainless Steel Solenoid Valve

Product Description

The ASCO EV8327G042 is a reliable 3-way solenoid valve with a durable stainless steel body, suitable for high flow applications. This valve operates at 24 DC voltage and features a coil wattage of 11.6. It controls the flow of air, water, and light oil with a maximum operating pressure differential of 150 PSI for each fluid type.

• Designed for high flow applications.
• Features a stainless steel body for corrosion resistance.
• Explosionproof and watertight enclosure.

Product Highlights

This valve is ideal for systems requiring efficient flow control. It is direct acting and utilizes FKM material for the seat, ensuring reliability under demanding conditions.

Product Information

Standard Information

• Manufacturer: ASCO
• Size: 1/4 inch

Technical Specifications

• MPN: EV8327G042
• Orifice Diameter: 1/4 inch
• Body Material: Stainless Steel
• Body Design: 3-Way
• Operation: Universal
• Voltage: 24 DC
• Max Fluid Temp: 248 degrees Fahrenheit
• Cv: 0.49
• Min. OPD: 0 PSI
• Max OPD Air: 150 PSI
• Max OPD Water: 150 PSI
• Max OPD Light Oil: 150 PSI
• Coil Wattage: 11.6
• Electrical Connection: 1/2 inch Conduit with 18 Leads
• Solenoid Enclosure: Explosionproof & Watertight
• Construction: Direct Acting
• Seat Material: FKM
