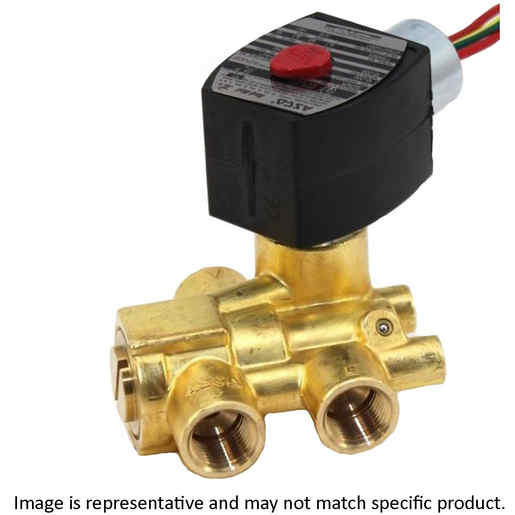

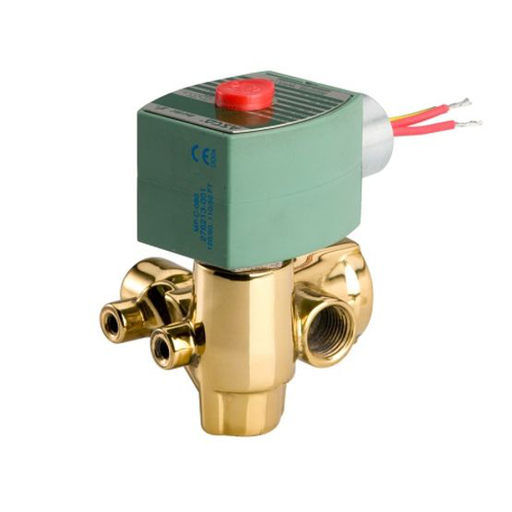

ASCO EFHC8321G002DC125/DCD 321 Series 3-Way NC Solenoid Pilot Valve

Product Description

The ASCO EFHC8321G002DC125/DCD is a three-way normally closed solenoid pilot valve from the 321 Series. It is designed to control the flow of air, inert gas, light oil, and water with ease. This valve operates with a 125 VDC power supply and features a three-eighths inch FNPT port.

• Constructed with brass and stainless steel for durability.
• Suitable for a temperature range of thirty-two to one hundred twenty degrees Fahrenheit.
• Certified for hazardous locations per ATEX and IECEx standards.

Product Highlights

This pilot-operated valve uses Buna-N seals and can be installed in any position, making it versatile in various applications.

Product Information

Standard Information

• Valve Type: Pilot, Solenoid
• Port Type: 3/8 FNPT

Technical Specifications

• Number of Ports/Way: 3 Port, 3 Way
• Actuation: Solenoid - Air Pilot
• Voltage: 125 VDC
• Maximum Pressure: 200 PSI
• Operating Pressure Range: 10 to 200 PSI
• Operating Temperature Range: 32 to 120 Degrees Fahrenheit
• Seal Type: Buna-N
• Body Material: Brass, Stainless Steel
• Overall Width: 2.907 Inch
• Overall Length: 3.12 Inch
• Overall Height: 3.859 Inch
• Weight: 2.01 lb
• Operating Environment: Corrosive, Indoor, Outdoor
• Standards/Regulations: ATEX Zone 1-21, ATEX Zone 2-22
