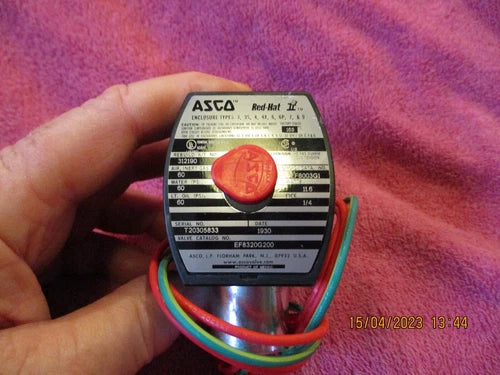

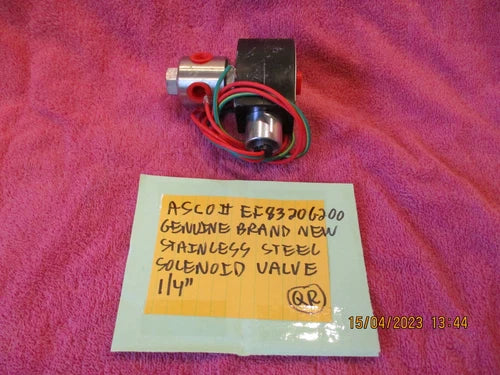

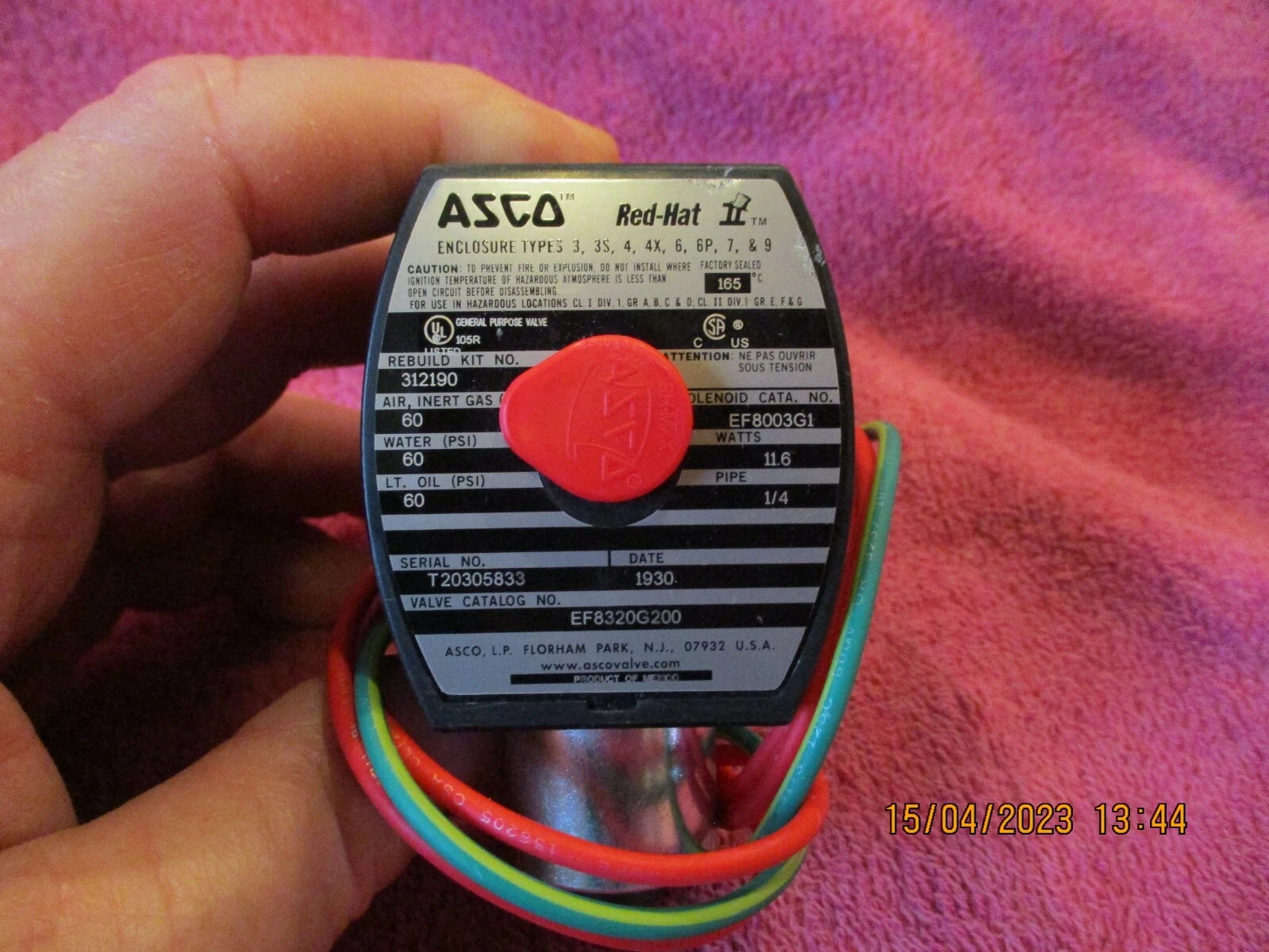

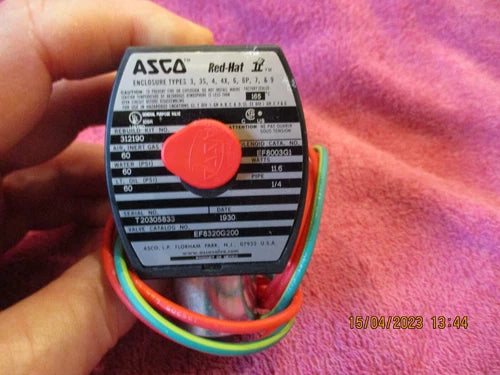

ASCO EFHB8320G200 Solenoid Valve - 3-Way, 1/4 inch, General Service

Product Description

The ASCO EFHB8320G200 is a three-way solenoid valve designed for various applications involving air, inert gases, water, and light oils. The valve features a stainless steel body and comes with a quarter-inch NPT connection. It operates universally, eliminating the need for a minimum pressure differential, and can be installed in any orientation. The valve supports a maximum fluid temperature of two hundred degrees Fahrenheit and has a flow rate of zero point twelve Cv with an orifice size of three thirty-seconds of an inch. As a safety feature, this solenoid valve is explosion-proof and complies with SIL-3 standards, making it suitable for hazardous environments.

• Mountable in any position, suitable for various fluids.
• Stainless steel construction with a rated maximum temperature of two hundred degrees Fahrenheit.
• Designed for explosive environments with SIL-3 certification.

Product Highlights

This valve is ideal for HVAC applications and plumbing tasks, providing reliable control in industrial settings.

Product Information

Standard Information

• Brand: ASCO
• MPN: EFHB8320G200

Technical Specifications

• Enclosure Rating: NEMA 3, NEMA 4
• Cv: 0.12
• Media Compatibility: Air, Inert Gas, Water, Light Oil
• Power Supply: DC Line Power
• Pipe Size: 1/4 inch
• Pressure Range: 0 - 60 PSI
• Body Material: Stainless Steel
• Max Media Temperature: 200 degrees Fahrenheit
• Valve Operation: Universal
• Supply Voltage: 24 VDC
• Flow Rate: 0.12 Cv
• Function: 3-Way
• Max Pressure: 100 psig
• Port Connection: FNPT
• Coil Insulation Class: Class F
