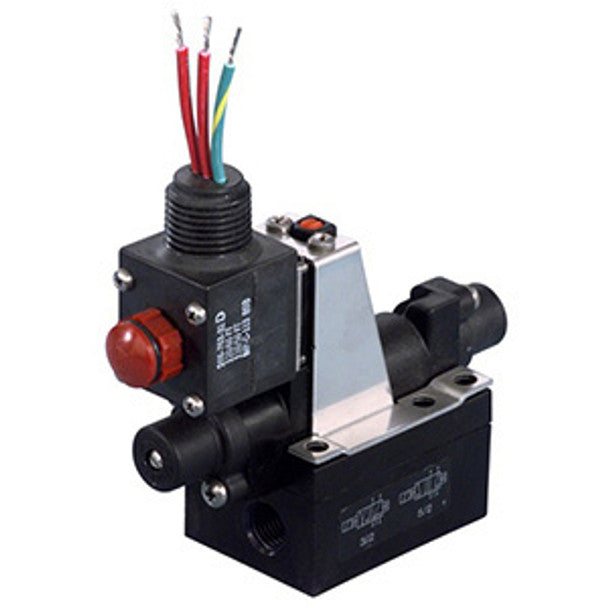

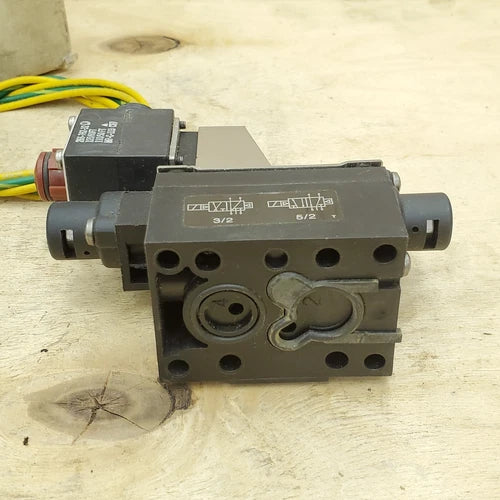

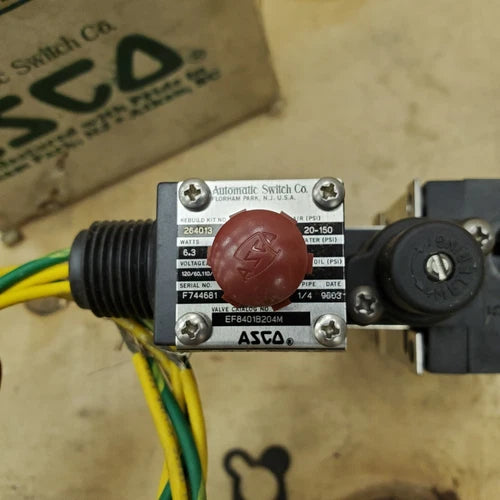

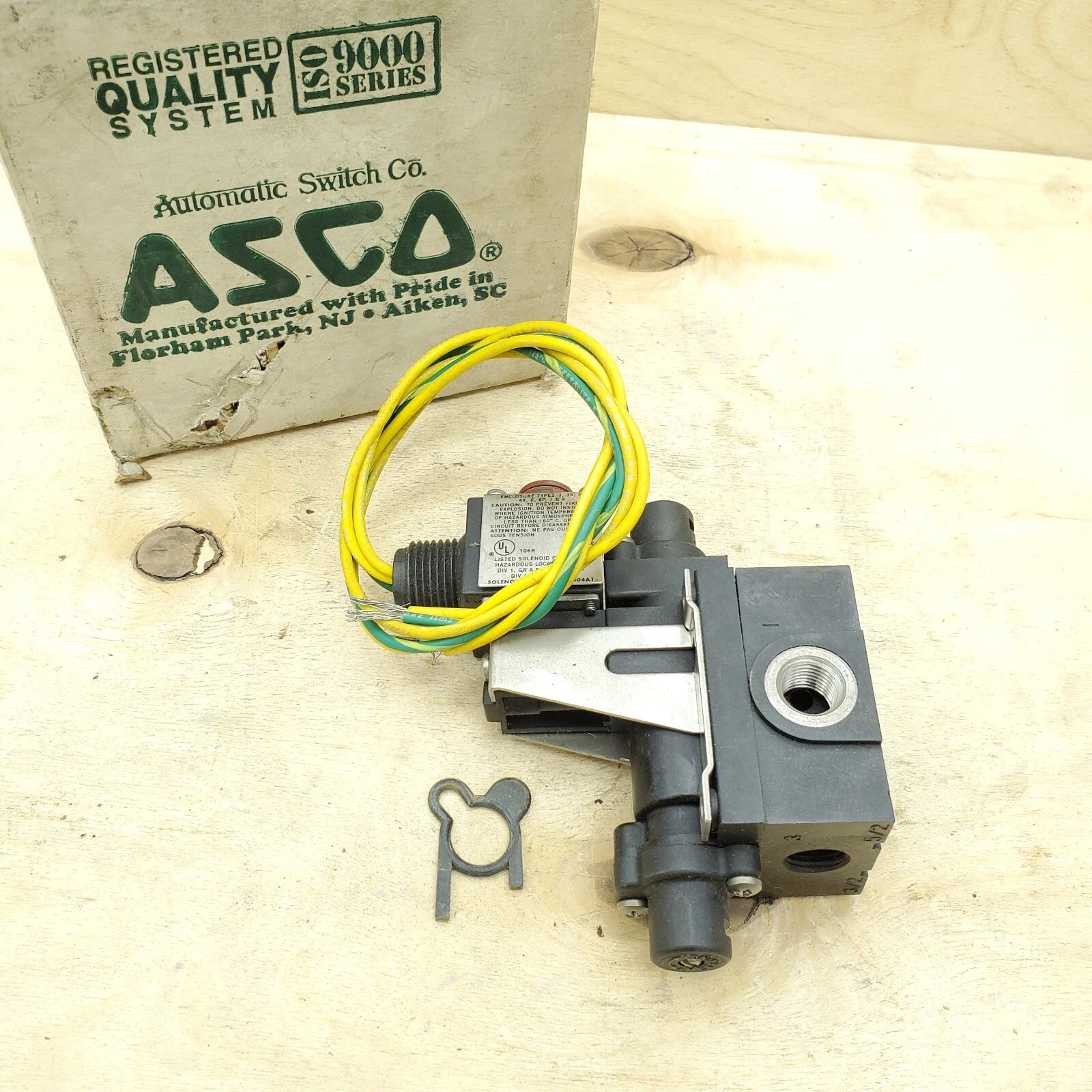

ASCO EF8401B204M 3-Way Solenoid Valve - 1/4 NPT, 24VDC

Product Description

The ASCO EF8401B204M is a reliable solenoid valve designed for use with air and inert gas media. This valve operates on a twenty-four volt direct current supply and has a consumption of six point nine watts. Made with a thermoplastic body and NBR seal material, it provides a durable solution for various applications. The valve is configured as a four-way, two-position valve with an orifice size of one quarter inch and a flow factor of zero point five Cv. It is built to handle pressure ratings from twenty to one hundred fifty psi and maintains a normally closed position.

• Constructed with thermoplastic body for durability
• Compatible with air and inert gas
• Offers manual operation options

Product Highlights

This valve allows for direct mounting and comes with NEMA ratings of one, two, three, three S, four, and four X. It has certifications from both CSA and UL, ensuring its safety and reliability. The ambient temperature range is from zero to seventy-seven degrees Fahrenheit, while the fluid temperature is also set at seventy-seven degrees Fahrenheit.

Product Information

Standard Information

• Brand: ASCO
• Model: EF8401B204M

Technical Specifications

• Valve Operation: Solenoid
• Approval: CSA, UL
• Body Material: Thermoplastic
• Input Supply Rating: 24 VDC
• Media Handled: Air-Inert Gas
• Mounting Type: Direct Mount
• Port Connection: 1/4 in. Female Threaded
• Pressure Rating: 20 to 150 psi
• Temperature Rating: 77°F
• Valve Position: Normally Closed (NC)
• NEMA Rating: NEMA 1/2/3/3S/4/4X
• Product Family: Series 401
• Product Category: Valves
• Product Type: Solenoid Valves
• Voltage: DC 24 V
• Function: 4-Way/2-Position
• Port Configuration: 4-way
• Seal Material: NBR
• Wattage: 6.9 W
• Orifice Size: 1/4 Inch
• Flow Factor: 0.5 Cv
• Coil Insulation Type: Class F
• Ambient Temperature Rating: 0 to 77°F
