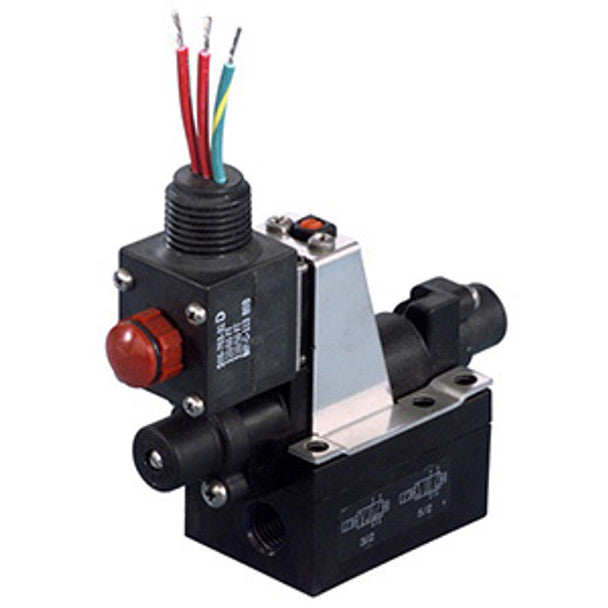

ASCO EF8401B202M Solenoid Valve 24V DC 1/4

Product Description

The ASCO EF8401B202M is a 4-way solenoid valve designed for direct mount pilot valve applications. This valve operates on twenty-four volts DC power and features a quarter-inch threaded end connection.

• Constructed with a thermoplastic body for durability.
• Operates within a pressure range of twenty to one hundred fifty psi.
• Enclosure rated NEMA 4X/7/9 for explosionproof and watertight protection.

Product Highlights

Ideal for controlling air and inert gases, this solenoid valve allows for selectable 3/2 normally closed or 4/2 operation via sub-base gasket rotation.

Product Information

Standard Information

• Brand: ASCO
• MPN: EF8401B202M

Technical Specifications

• Current Type: DC
• End Connection: Threaded
• Nominal Size: 1/4
• Pattern: 4-Way
• Voltage: 24V
• Max Fluid Temp: 104°F
• Min OPD: 20 PSI
• Max OPD Air: 150 PSI
