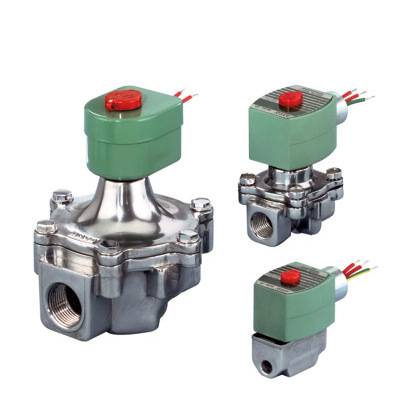

ASCO EF8215G023 120V 1/2 NO Vent Valve 120/60 110/50

Product Description

The ASCO EF8215G023 is a 1/2 inch normally open vent valve. It operates with a coil voltage of 120/60 and 110/50. This valve is suitable for gas and air applications. It is designed for environments that require explosion-proof housing.

• Pipe size: 1/2 inch
• Maximum gas capacity: 206,250 BTU/hr
• Coil class: F

Product Highlights

This valve supports a wide range of temperatures and is suitable for various applications, including HVAC systems. It has an aluminum body and NBR seat material that enhances its durability.

Product Information

Standard Information

• Brand: ASCO
• Part Number: EF8215G023

Technical Specifications

• Mode: Normally Open
• Type: 2 Way
• CV: 4
• Max Gas Pressure: 125 PSI
• Max Air Pressure: 125 PSI
• Pipe Size: 1/2 inch
• Coil Voltage: 120/60 and 110/50
• Orifice Size: 3/4 inch
• Weight: 1.75 lbs
• Max Fluid Temperature: 125°F
• Min Ambient Temperature: 32°F
• Max Ambient Temperature: 125°F
