Asco EF8215G020 Fuel Gas Solenoid NC 4.4 cv Aluminum

Product Description

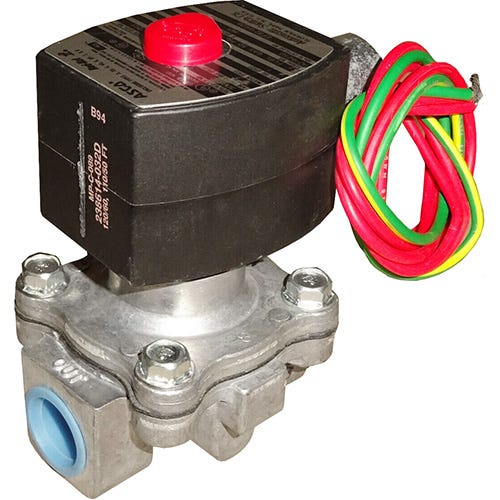

The Asco EF8215G020 Fuel Gas Solenoid Valve is designed for air and fuel gas applications. This two-way valve features a normally closed configuration and is built with an aluminum body.

• 2-way explosion-proof valve
• 120VAC voltage operation
• UL Listed, FM Approved, and CE Certified

Product Highlights

This solenoid valve is ideal for air and fuel gas control. It features a normally closed configuration and aluminum construction. Suitable for indoor and outdoor use, it is explosion-proof and watertight.

Product Information

Standard Information

• Brand: Asco
• MPN: EF8215G020
• Product Type: Valve
• Manufacturer: Asco

Technical Specifications

• Valve Ways and Positions: 2-Way/2-Position
• Valve Configuration: Normally Closed
• Media: Air, Fuel Gas
• Pipe Size: 1/2 inch
• Min. Operating Pressure Differential: 0 psi
• Max. Operating Pressure Differential: 50 psi
• Body Material: Aluminum
• Seal Material: NBR
• Orifice Diameter: 3/4 inch
• BtuH: 238,500
• Ambient Temperature Range: 32 Degrees to 125 Degrees F
• Watts: 10.1
• NEMA Rating: 7, 9
• Coil Enclosure: Explosionproof and Watertight
• Electrical Connections: 18 inch Leads
• Max. Fluid Temperature: 125 Degrees F
• Hz: 50/60
• Overall Length: 2-3/4 inches
• Overall Width: 2-15/32 inches
• Overall Height: 4 inches
• Center Line Pipe Center Size: 3-15/32 inches
• Application: Air and Vacuum Service
• Standards: UL Listed, FM Approved, Meets Applicable CE Directives
