Asco EF8210G9 Solenoid Valve 120V 3/4 Inch NC Brass

Product Description

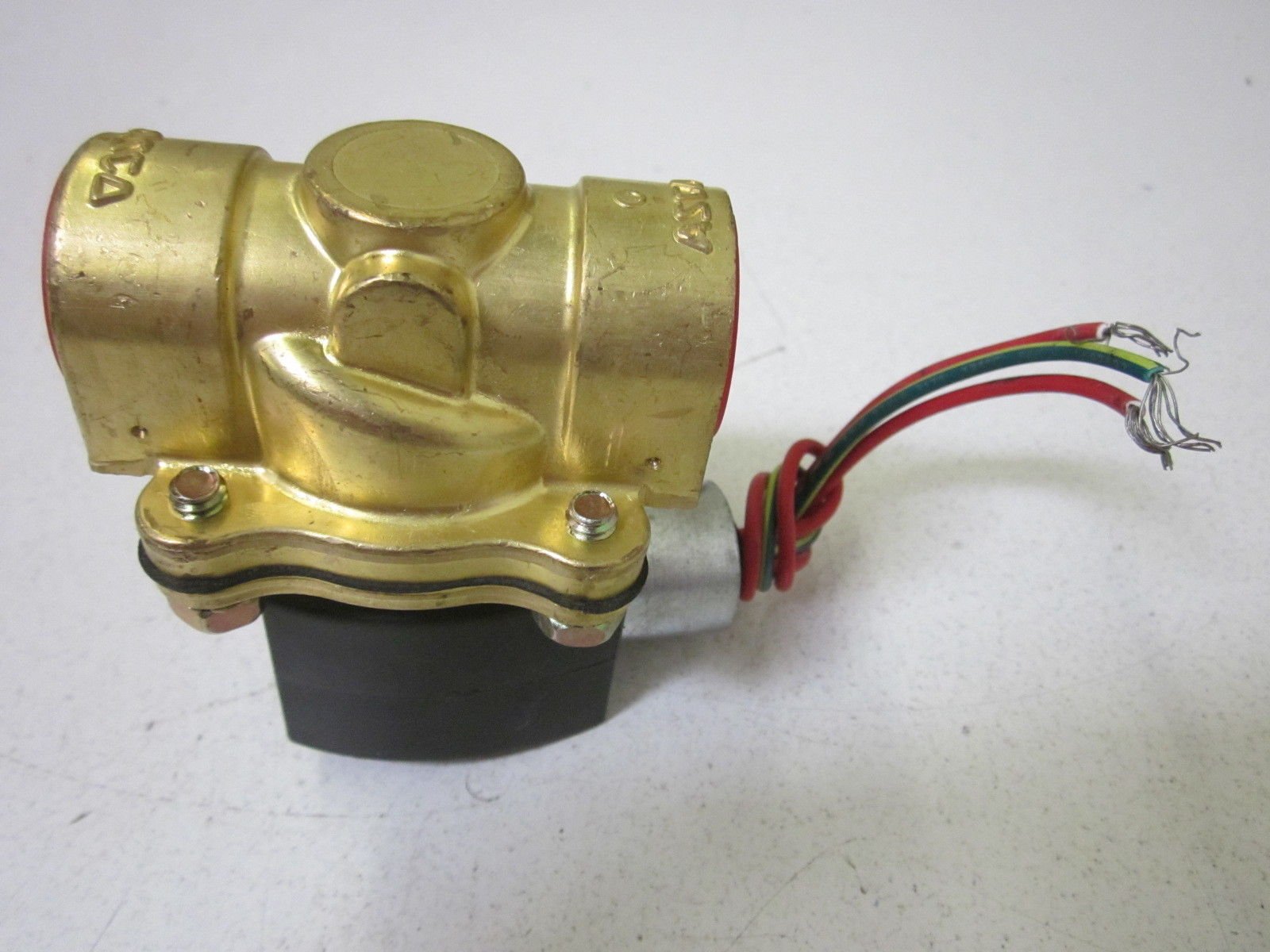

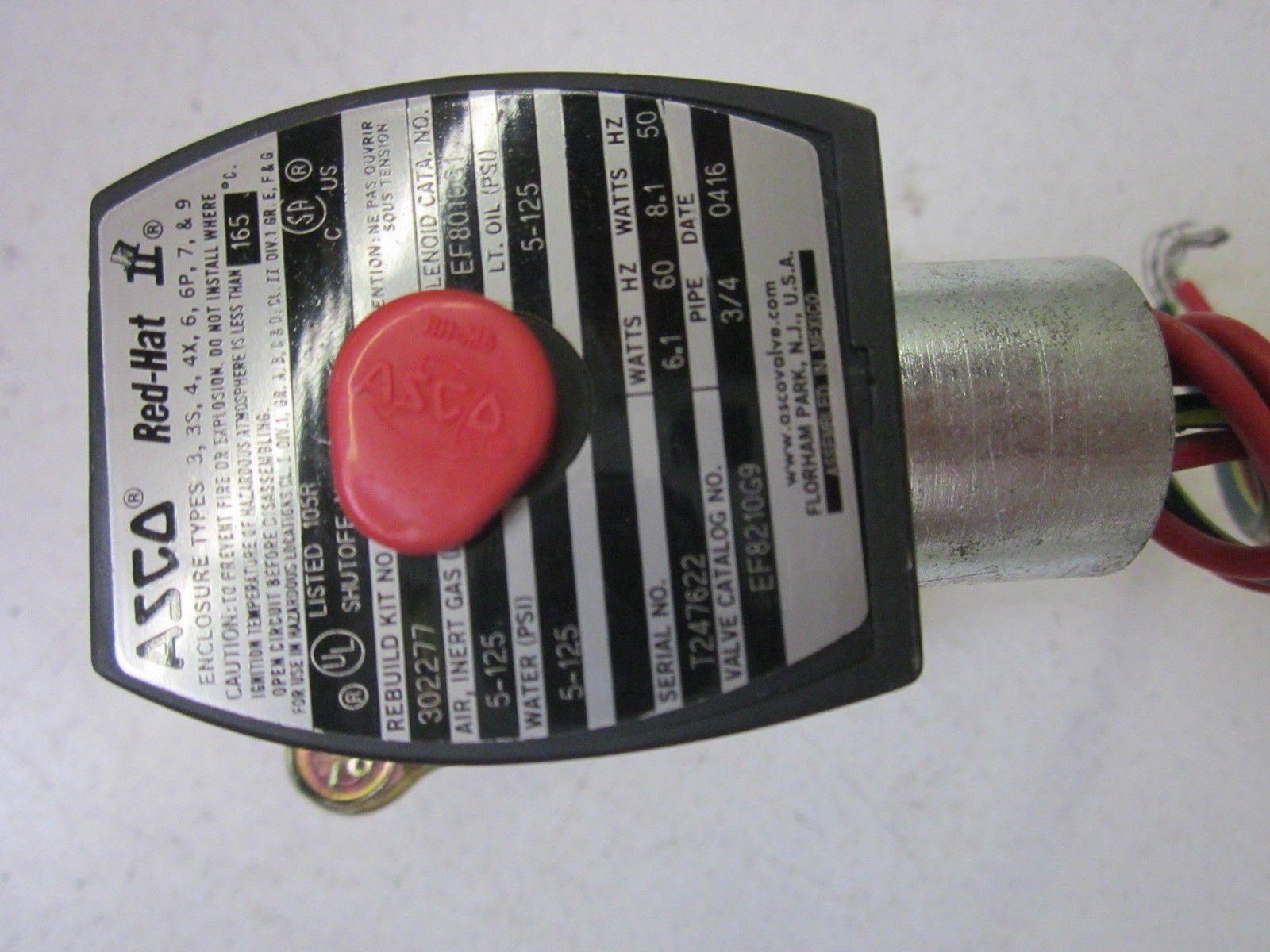

Asco EF8210G9 is a 3/4 inch normally closed solenoid valve designed for general service applications. This high-quality brass valve is suitable for a wide range of media including air, water, and light oil.

• Durable brass construction ensures long-term reliability and resistance to corrosion.
• Operates efficiently with a 120V AC coil, suitable for various industrial environments.
• Compact design with 3/4 inch female NPT ports for easy installation.

Product Highlights

The Asco EF8210G9 valve provides consistent performance with a pressure range of 5 to 125 PSI and a Cv flow factor of 5. Its normally closed position offers safety and control in fluid handling systems.

Product Information

Standard Information

• Brand: Asco
• MPN: EF8210G9
• Category: Solenoid Valves & Coils

Technical Specifications

• Body Material: Brass
• Connection Type: Female NPT
• Valve Type: Normally Closed
• Voltage: 120V AC
• Pressure Range: 5 to 125 PSI
• Flow Factor (Cv): 5
• Dimensions: Length: 8.01 inches, Width: 8.01 inches, Height: 8.01 inches
