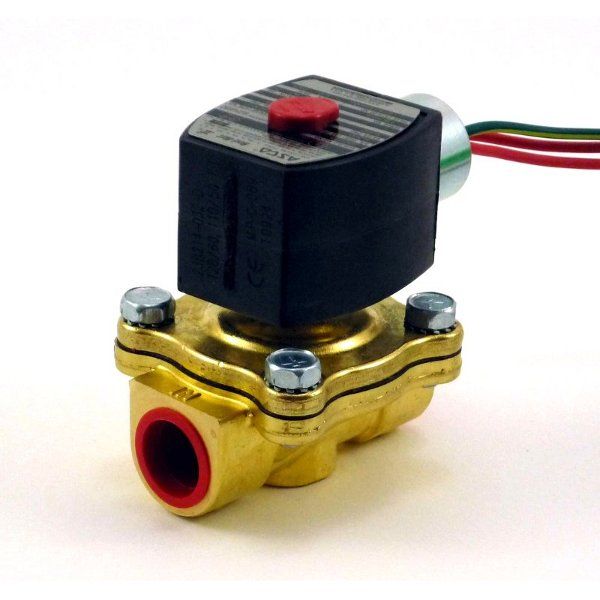

ASCO EF8210G034 120/60 110/50 1/2 in 120 volt NO Air Water Exp Proof

Product Description

The ASCO EF8210G034/120/60/110/50 is a solenoid valve designed for reliable performance in air and water applications. This valve features a brass body suitable for environments up to 150 psi. It operates on a voltage of 120 volts with a normally open configuration, making it ideal for controlling fluid flow effectively.

• Brass body construction for durability
• 150 psi maximum pressure rating for air and water
• Normally open design for straightforward operation

Product Highlights

This valve is suitable for various applications including HVAC and industrial systems where explosion-proof specifications are required.

Product Information

Standard Information

• Brand: ASCO
• Part Number: EF8210G034/120/60/110/50

Technical Specifications

• Type: 2 Way
• Series: 8210
• Pipe Size: 1/2 inch
• Coil Voltage: 120/60 110/50
• Max Pressure (Air/Water): 150 psi
• Body Material: Brass
• Seat Material: NBR
• Max Fluid Temperature: 180 degrees
• Inrush Current: 70 VA
• Holding Current: 25 VA
• Lead Length: 18 inches
• Shading Ring: Copper
• Mounting Direction: Any
• Max Ambient Temperature: 125 degrees
• Min Ambient Temperature: 32 degrees
