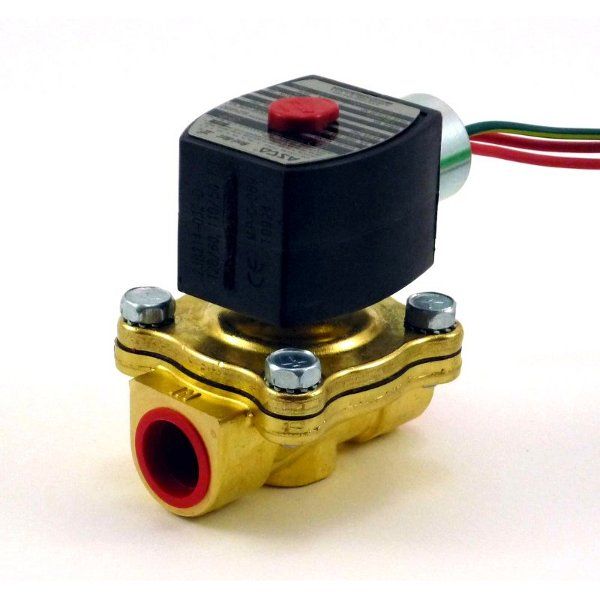

ASCO EF8210G004120/60110/50 1in 120v Explosion Proof AWO 5-150#

Product Description

The ASCO EF8210G004120/60110/50 is a one-inch solenoid valve designed for use with air, water, and oil systems. This valve operates at a voltage of 120V and is rated for a minimum pressure of five pounds and a maximum pressure of 150 pounds. It is built to be explosion-proof, ensuring safety in hazardous environments.

• Pressure Rating: 5# min, 150# max
• Type: Normally Closed, 2 Way
• Coil Class: Class F

Product Highlights

This valve features a brass body and NBR seat material, providing durability and resistance to wear. It can be mounted in any direction, making installation flexible. Its Nema 7 housing ensures it meets stringent safety standards for hazardous areas.

Product Information

Standard Information

• Brand: ASCO
• Harmonized Code: N/A

Technical Specifications

• Cv: 13
• Pipe Size: 1 inch
• Max Fluid Temperature: 180
• Min Differential (PSI): 5
• Max Ambient Temperature: 125
• Min Ambient Temperature: 32
• Inrush Current (VA): 40
• Holding Current (VA): 16
• Rebuild Kit Number: 302280
