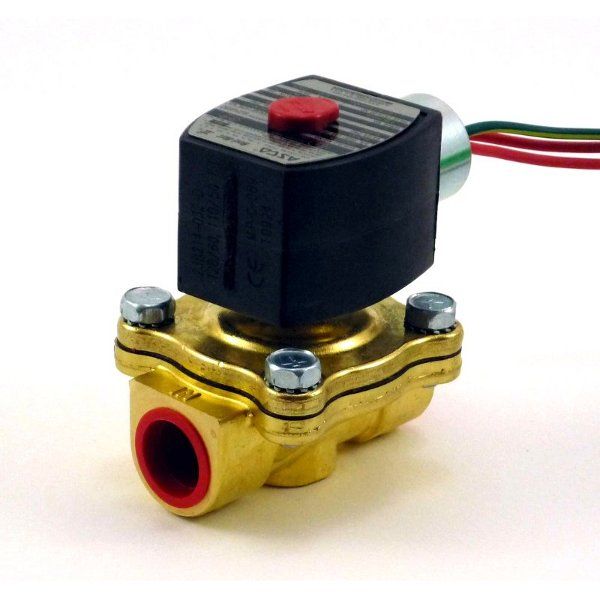

ASCO EF8210G003 120v N.C. w/ EP Hsg 3/4in Replacement MPN

Product Description

The ASCO EF8210G003 is a solenoid valve with a three-quarter inch pipe size. It operates at a voltage of one hundred twenty volts and is rated as a normally closed unit. This product features explosion-proof housing, making it suitable for various applications. The valve is designed to control the flow of fluids with a maximum fluid temperature of one hundred eighty degrees Fahrenheit.

• Pipe Size: Three-quarter inch
• Coil Voltage: One hundred twenty / sixty, one hundred ten / fifty
• Body Material: Brass

Product Highlights

This valve is often used in HVAC systems and other plumbing needs where reliable fluid control is crucial.

Product Information

Standard Information

• Brand: ASCO
• MPN: EF8210G003120/60110/50

Technical Specifications

• Type: 2 Way
• Series: 8210
• Max (Air): 250 PSI
• Max (Water): 150 PSI
• Watt Rating: 6.1
• Lead Length: 18 inches
• Orifice Size: 3/4 inch
• Inrush Current (VA): 40
• Holding Current (VA): 16
