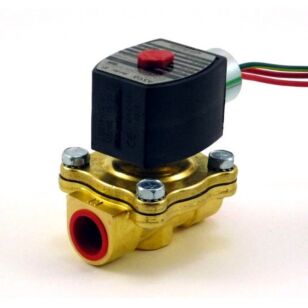

ASCO EF8210G002120/60110/50 1/2in 120V Exp Proof Air/Water 5-150#

Product Description

The ASCO EF8210G002120/60110/50 is a solenoid valve designed for controlling air and water flow with a size of one half inch. This valve operates at a coil voltage of one hundred twenty volts, and it is suitable for applications requiring a minimum pressure of five pounds per square inch and a maximum pressure of one hundred fifty pounds per square inch. The ASCO brand is recognized for its reliability and performance in various industrial applications.

• Type: Normally Closed
• Max Pressure: 150 PSI
• Body Material: Brass

Product Highlights

This valve is ideal for HVAC systems, water treatment, and various industrial fluid control applications. Its explosion-proof housing protects against hazardous environments.

Product Information

Standard Information

• Coil Class: Class F
• Mounting Direction: Any

Technical Specifications

• Cv: 4
• Type: 2 Way
• Max (Air): 200 PSI
• Orifice Size: 5/8 inches
• Lead Length: 18 inches
• Watt Rating: 6.1
• Max Fluid Temperature: 180 degrees Fahrenheit
• Inrush Current (VA): 40
• Holding Current (VA): 16
