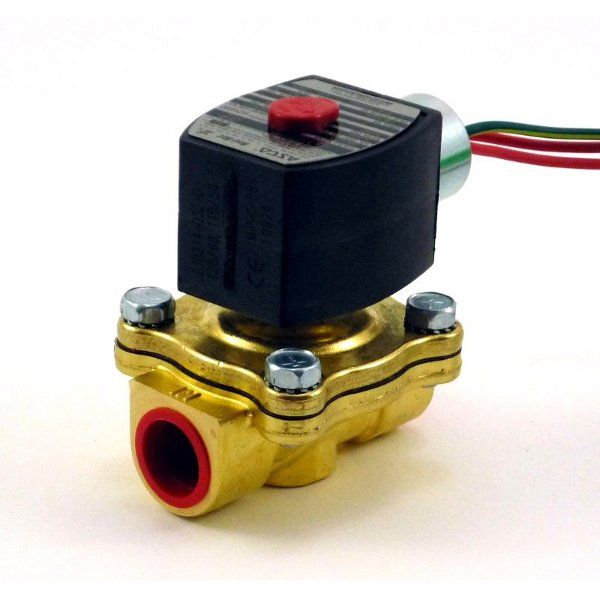

ASCO EF8210G001 120/60 110/50 2 Way Explosion Proof Solenoid Valve

Product Description

The ASCO EF8210G001 is a two way explosion proof solenoid valve designed for various industrial applications. It operates under the standard coil voltage of one hundred twenty volts at sixty hertz or one hundred ten volts at fifty hertz. This valve features a normally closed mode, making it ideal for operations where safety and reliability are crucial.

• Explosion-proof housing type meets Nema 7 standards.
• Brass body and NBR seat material ensure durability and resistance to corrosion.
• Max fluid temperature reach up to one hundred eighty degrees.

Product Highlights

This valve supports applications in environments that require safety from explosive gases and vapors. Its versatile mounting direction allows for flexible installation options.

Product Information

Standard Information

• Brand: ASCO
• Type: 2 Way

Technical Specifications

• Cv: 3
• Pipe Size: 3/8
• Coil Class: Class F
• Max (Air): 200
• Max (Water): 150
• Watt Rating: 6.1
• Housing Type: Nema 7 Explosion Proof
• Body Material: Brass
• Seat Material: NBR
• Orifice Size: 5/8
• Max Fluid Temperature: 180
• Max Ambient Temperature: 125
• Min Ambient Temperature: 32
• Inrush Current (VA): 40
• Holding Current (VA): 16
• Lead Length: 18
• Rebuild Kit Number: 302273
• Min Differential (PSI): 5
• Mounting Direction: Any
• Shading Ring: Copper
