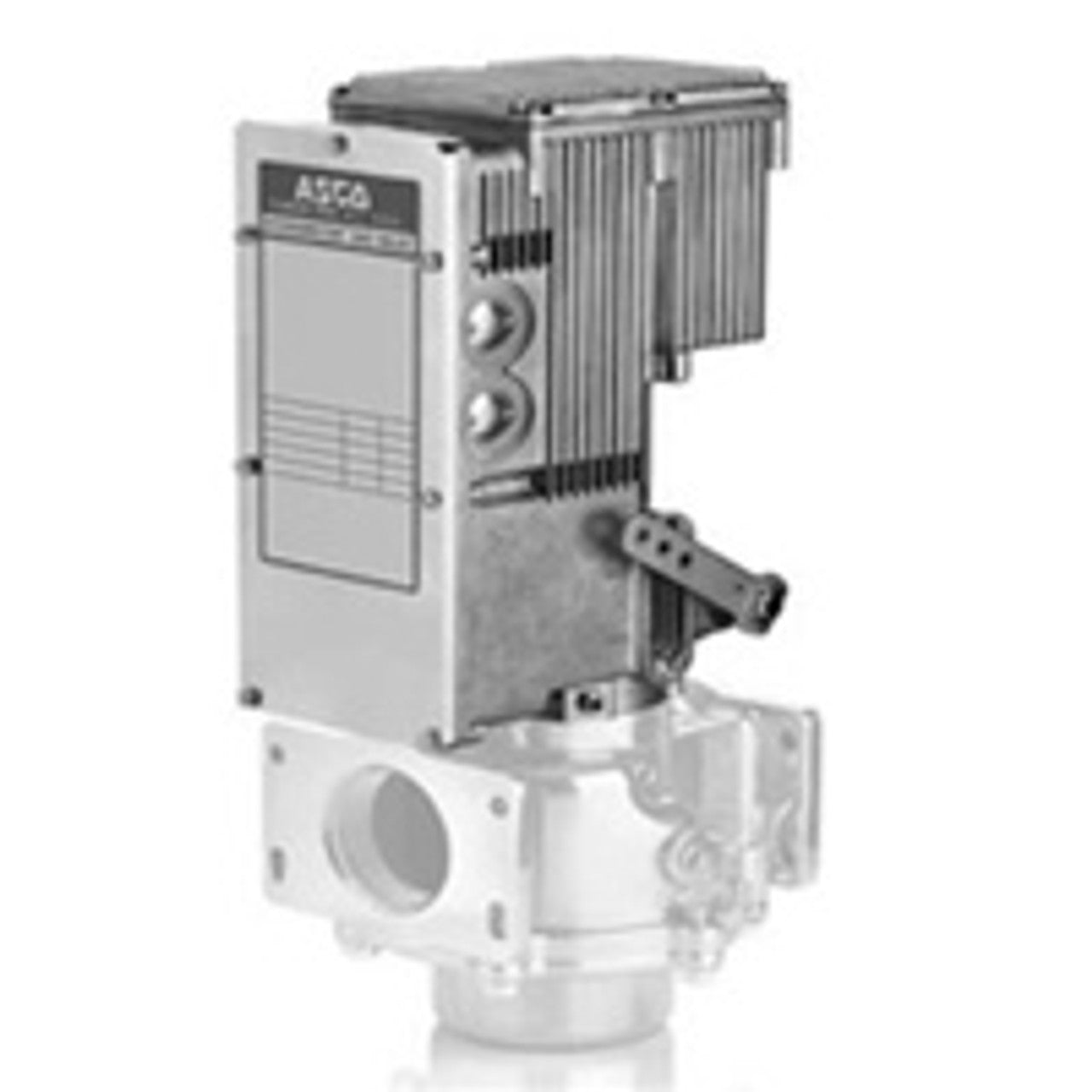

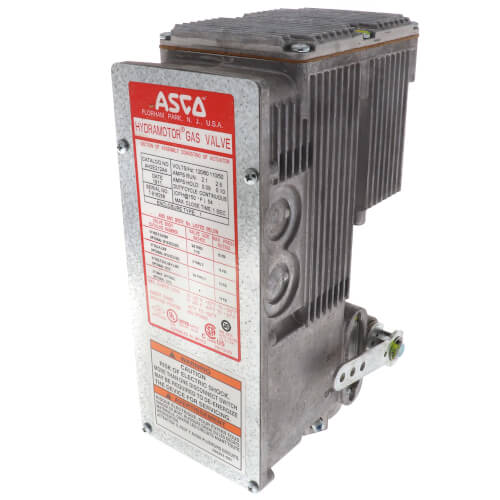

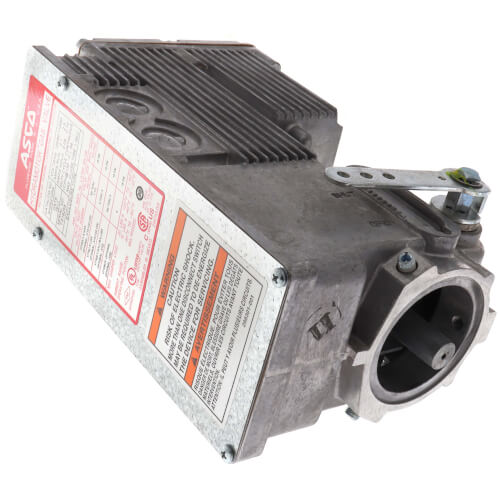

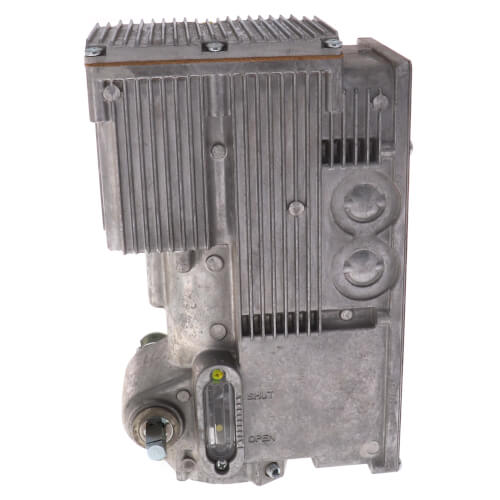

ASCO AH2E212A4 Standard General Purpose Fast Opening Hydramotor Actuator 110/120V

Product Description

The ASCO AH2E212A4 Hydramotor is an electrohydraulic linear actuator designed for efficient operation in gas control applications. It operates at a voltage of 110/120V and provides a fast spring return shutoff time of one second or less. This actuator is ideal for use with V710 gas valves and is recognized for its reliable performance in boilers, furnaces, ovens, and commercial burners.

• Fast opening and closing times for effective control
• Aluminum construction for durability in various environments
• Includes damper arm and damper shaft for easy installation

Product Highlights

The ASCO AH2E212A4 offers enhanced control over gas flow with quick response times, making it suitable for various industrial applications.

Product Information

Standard Information

• Product Type: Electrohydraulic Linear Actuator
• Voltage: 110/120V

Technical Specifications

• Hertz: 60
• Material: Aluminum
• Power Requirements: 220 VA
• Closing Time: 1 second max.
• Opening Time (Fast Opening): 14 seconds max.
• Opening Time (Slow Opening): 26 seconds max.
• Brand: ASCO
• MPN: AH2E212A4
