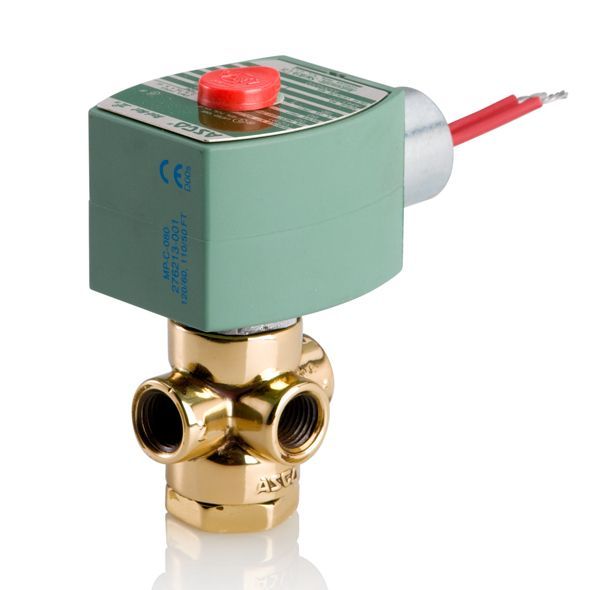

Asco 8320G184 AC 120/60,110/50 D 3-Way Solenoid Valve 1/4 in

Product Description

The ASCO 8320G184 AC 120/60,110/50 D is a 3-way solenoid valve designed for general service applications. It features a brass body with a 1/4" x 3/32" porting configuration. This valve operates on AC voltage of 120/60 and 110/50 Hz, making it suitable for various industrial environments. It is designed for reliable performance and durability.

• Available in 1/8" and 1/4" pipe sizes, normally closed, normally open, or universal operation
• Direct-acting brass or stainless steel body valve for air, inert gas, water, and light oils to 300 SSU, with max fluid temperatures to 200 0 °F
• All NPT connections are in the valve body to allow for in-line piping

Product Highlights

The ASCO 8320 series solenoid valve is ideal for fluid control in pneumatic systems and automation processes.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8320G184 AC 120/60,110/50 D
• Country of Origin: United States

Technical Specifications

• Max Media Temperature: 200 0 °F
• Media Compatibility: Air-Inert Gas,Light Oil,Water
• Power Supply: AC Line Power
• Type: Three Way
• Connection: NPT
• Valve Operation: Normally Closed
• Orifice Size: 3/32 in
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Cv: 0.12
• Pipe Size: 1/4 in
• Wetted Materials: Brass, Buna N
• Pressure Range: 0 - 150 PSI
• Supply Voltage (Nominal): 110/50 VAC,120/60 VAC
• Seal Material: Buna N
• Valve Function: General Service
• Solenoid Valve Type: Three Way
• Operation: Normally Closed
• Internal Port Size: 3/32"
• Temperature: 180 0 °F
• Applications: on/off service for clean water/air
• Voltage: 120/60,110/50 AC
• Manufacturer: ASCO
• Size: 1/4 In
• Mfg. Product Number: 8320G184AC120/60 110/50D
• Series: 8320
• Max Fluid Temp: 200 0 °F
• Ambient Temp. Range: 32 to 125 0 °F
• Min. OPD: 0 PSI
• Max OPD Air: 150 PSI
• Max OPD Water: 150 PSI
• Max OPD Lt. Oil: 150 PSI
• Coil Wattage: 10.1
• Electrical Connection: 1/2" Conduit w/ 18" Leads
• Solenoid Enclosure: Watertight
• Construction: Direct Acting
• Seat Material: NBR
• Application / Media: Industrial / commercial fluid control
• Coil Voltage: AC120/60,110/50
• Product Family: Solenoid Valve / Operator / Component
• Size Code: 184
• Actuation Method: Solenoid
• Coil Class: H
• Cv/Kv (Exhaust Port): 0.12 Cv - 0.10 Kv
• Cv/Kv (Pressure Port): 0.12 Cv - 0.10 Kv
• Drawing Number: 236452
• Holding Current (VA): 25
• Inlet Pipe Size (NPT): 1/4
• Lead Length: 18 in - 45.7 cm
• Mounting Direction: ANY
• Seating Elastomer: FKM
• Watt Rating A: 10.10 W
• Valve Unit: 3W NC
• Brand: ASCO
