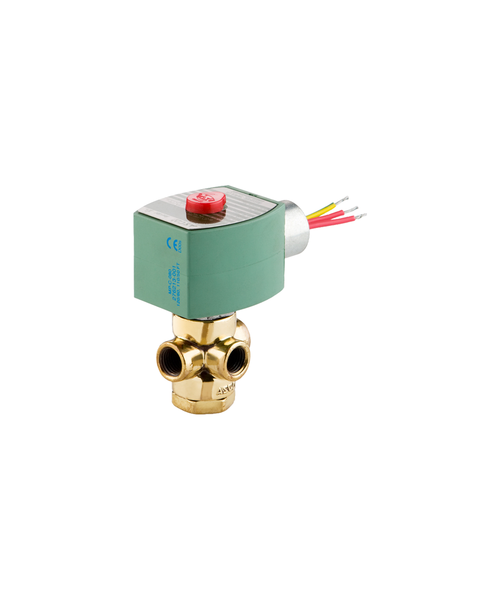

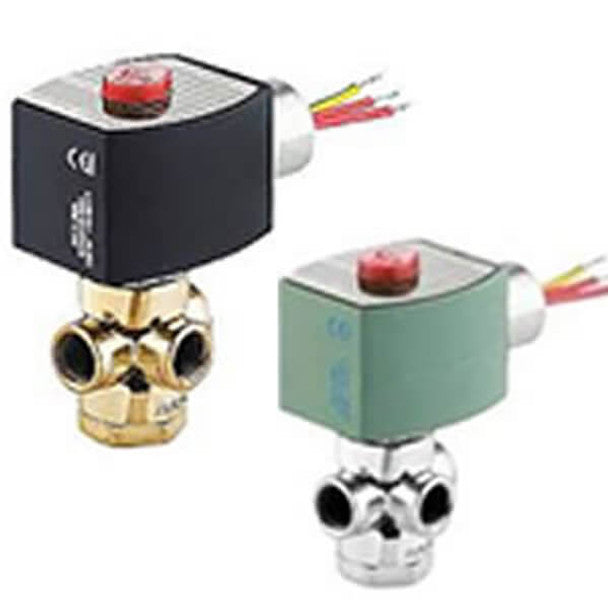

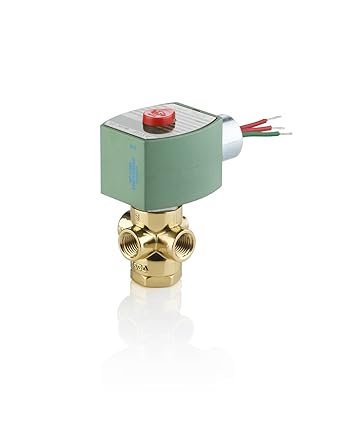

ASCO 8320G136MS 3-Way Normally Open General Service Solenoid Valve

Product Description

The ASCO 8320G136MS is a solenoid valve designed for general service applications. It features a brass body and is compatible with air, water, and light oil. This valve offers three pipe connections that allow for in-line piping. The valve operates normally open, exerting pressure to the cylinder port when not energized.

• 3-way valve with one eighth inch pipe size
• Suitable for air, inert gas, water, and light oil
• Manual operator included for manual closing

Product Highlights

Product Information

Standard Information

• Manufacturer: ASCO
• Product Family: Series 320

Technical Specifications

• MPN: 8320G136MS
• Valve Type: Solenoid Valve
• Function: 3-Way
• Valve Configuration: 3-Port / 2-Position
• Valve Operation: Normally Open
• Body Material: Brass
• Seal Material: NBR
• Inlet Connection Type: National Pipe Tapered
• Pipe Size: 1/8 in
• Orifice Size: 3/64 in
• Max. Pressure: 200 psig
• Max Fluid Temperature: 180 °F
• Input Voltage: 120/60 VAC, 110/50 VAC
• Wattage: 6.1 W
• Electrical Connection: 1/2 Conduit w/ 18 Leads
• Enclosure Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
• Certifications: UL General Purpose Valve, CSA certified
