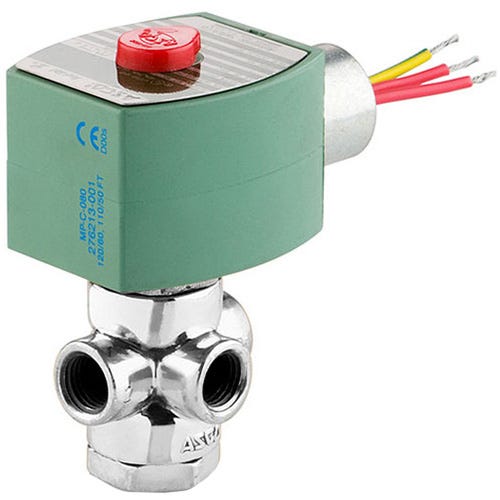

Asco 8320G045 Ac 120/60,110/50 D 3-way Solenoid Valve

Product Description

The ASCO 8320G045 AC 120/60,110/50 D is a three-way, normally closed solenoid valve designed for precise fluid and gas control in industrial and commercial systems. Built with a stainless steel body and Buna N seals, it handles air, inert gas, light oil, and water at operating pressures up to 150 PSI for air and inert gas, and 125 PSI for water and oil. The valve operates on AC line power at 120/60 VAC or 110/50 VAC, making it compatible with standard North American and European supply voltages. Licensed HVAC technicians, plumbers, and industrial service technicians install this valve in process control, pneumatic, and fluid-handling applications.

This solenoid valve is suited for residential and commercial installations where three-way directional control of compatible media is required. Typical applications include pneumatic control circuits, water and light oil distribution systems, and instrumentation lines using 1/8 inch NPT threaded pipe connections. The valve carries a NEMA 4X enclosure rating among others, making it appropriate for wet, corrosive, or outdoor environments where ingress protection is a priority.

Key Features

• Three-way, normally closed valve operation for reliable fail-safe media shutoff
• Stainless steel body construction for corrosion resistance and durability
• Buna N seal material compatible with air, inert gas, water, and light oil
• Dual voltage rating: 120/60 VAC and 110/50 VAC for broad power supply compatibility
• NEMA 1, 2, 3, 3S, 4, and 4X enclosure ratings for versatile environmental deployment
• 1/8 inch NPT pipe connection with a Cv of 0.09 for precise low-flow control

Compatibility

Designed as an OEM-style replacement solenoid valve for three-way normally closed applications involving air, inert gas, water, or light oil in systems requiring 1/8 inch NPT connections and AC line power supply.

Installation Notes

This valve should be installed by a licensed technician familiar with fluid or pneumatic control systems. De-energize and depressurize the system fully before beginning installation or removal. Use appropriate pipe thread sealant rated for the media type when making NPT connections, and verify media compatibility before commissioning. Enclosure ratings should be matched to the installation environment in accordance with applicable NEC or local codes.

Technical Specifications

• Valve Type: Three Way
• Operation: Normally Closed
• Supply Voltage: 120/60 VAC, 110/50 VAC
• Power Supply: AC Line Power
• Pipe Size: 1/8 inch NPT
• Cv: 0.09
• Pressure Range (Air/Inert Gas): 0 - 150 psi
• Pressure Range (Water/Oil): 125 psi
• Max Media Temperature: 180 degrees F
• Body Material: Stainless Steel
• Seal Material: Buna N
• Media Compatibility: Air, Inert Gas, Light Oil, Water
• Enclosure Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
• Connection Type: NPT

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8320G045 AC 120/60,110/50 D
