Product Description

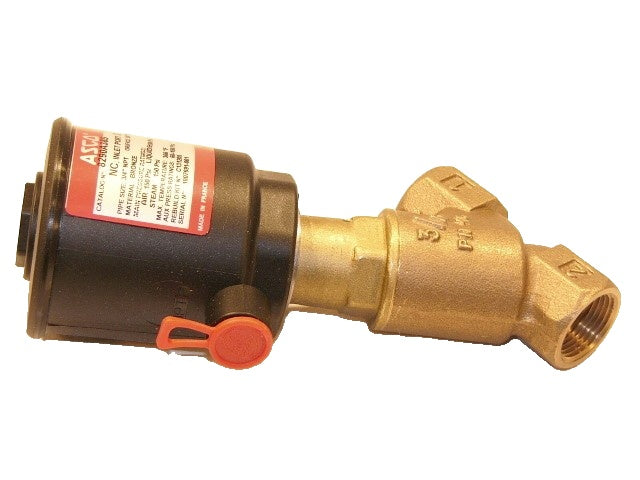

The Asco 8290A385 is a robust solenoid angle body piston valve designed for precise control of air, inert gases, light slurries, oil, and water in various hydraulic applications. Ideal for both indoor and outdoor environments, this valve operates efficiently with a media maximum operating pressure differential of 150 psi for both water and steam.
- Durable bronze body and PTFE seal material ensure longevity and reliable performance.
- Suitable for pipe size of 3/4 inches, facilitating seamless integration into existing systems.
- Engineered for temperatures ranging from 15 to 366 degrees Fahrenheit, accommodating a wide variety of industrial applications.
Product Highlights
Featuring a valve configuration that is normally closed, the Asco 8290A385 offers a coefficient of volume at 11.0, ensuring optimal flow control. Its compact design includes an overall length of 2-9/10 inches and a width of 5-9/10 inches, making it versatile for installation in restricted spaces.
Technical Specifications
-
Body Material: Bronze
-
Seal Material: PTFE
-
Pipe Size: 3/4 inches
-
Max Operating Pressure Steam and Water: 150 psi
-
Temperature Range: 15 to 366 degrees Fahrenheit
-
Orifice Diameter: 3/4 inches
-
Overall Dimensions: Length 2-9/10 inches, Width 5-9/10 inches, Height 6-1/4 inches
