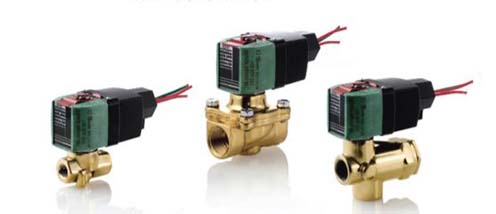

ASCO 8262R20224-120 Solenoid Valve - 1/4 NPT Port, 24-120/50-60 V dc

Product Description

The ASCO 8262R20224-120 is a solenoid valve designed for efficient control of liquids and gases. It operates on a voltage range of twenty-four to one hundred twenty volts DC across an input of fifty to sixty hertz. This two-way normally closed valve provides reliable performance in various applications.

• Coils accept either direct current or alternating current voltage
• Compatible with air, water, light oil, and non-corrosive media
• Approvals include UL, CSA, and CE regulations

Product Highlights

Engineered for durability and long lifespan, this valve minimizes power consumption while ensuring optimal performance.

Product Information

Standard Information

• Brand: ASCO
• Part Number: 8262R20224-120

Technical Specifications

• Actuation: Solenoid
• Port Size: 1/4 NPT
• Body Material: Brass
• Seal Material: NBR
• Orifice Diameter: 5/32 inches
• Certification: Safety Shutoff Valve (UL)
• Supply Voltage: 24-120 V dc
• Operating Pressure Differential: 300 psi (air), 225 psi (water), 180 psi (light oil)
• Ambient Temperature Range: -13 to 140 °F
• Operating Temperature Range: 0-180 °F
• Flow Coefficient (Cv): 0.52 Cv
• Rebuild Kit: 323593
• Replacement Coil: 250404-606
