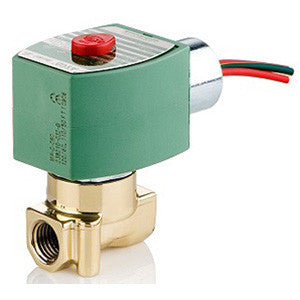

Asco 8262H232 2-Way N/C Solenoid Valve 1/4 inches 120/60 110/50 VAC

Product Description

The ASCO 8262H232 is a 2-way normally closed solenoid valve designed for general service applications. This valve features a brass body and Buna N elastomer seals, suitable for air, inert gas, water, and light oil. It has a 1/4" pipe size and 1/8" orifice with a Cv of 0.35. The valve operates on 120/60, 110/50 VAC power.

• Available in 1/8" to 3/8" pipe sizes
• Reliable, proven design for high flows
• Small poppet valves for tight shutoff

Product Highlights

This ASCO solenoid valve is mountable in any position and features a tapped mounting hole in the body. Suitable for NEMA 1, 2, 3, 3S, 4, and 4X environments.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8262H232 120/60 110/50

Technical Specifications

• Max Media Temperature: 180 °F
• Media Compatibility: Air-Inert Gas,Water,Light Oil
• Power Supply: AC Line Power
• Type: Two Way
• Valve Operation: Normally Closed
• Orifice Size: 1/8 in
• Solenoid Coil: 238610-032-D*
• Solenoid Kit: 323593
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Cv: 0.35 CV
• Pipe Size: 1/4 in
• Wetted Materials: Brass, Buna N
• Pressure Range: Air/Inert Gas, Water: 0 - 300 PSI; Oil: 0 - 200 PSI
• Supply Voltage (Nominal): 120/60 VAC,110/50 VAC
• Seal Material: Buna N Elastomer
• Certification: UL Safety Shutoff Valve
• Function: 2-Way
• Max. Pressure: 340/300 psig
• Valve Type: Direct-Acting
• Voltage: AC 120 V
• Product Family: Series 262/263
• Product Category: Valves
• Product Type: Solenoid Valves
• Port Configuration: 2-way
• Valve Position: Normally Closed (NC)
• Coil Insulation Class: Class F
• Valve Configuration: 2-Port / 2-Position
• Wattage: 10.1 W
• Way Type: 2-Way
• Media Handled: Air
• Temperature Rating: -13 ° to 180 °F (Fluid)
• Port Connection: 1/4 in. Female Threaded x 1/4 in. Female Threaded
