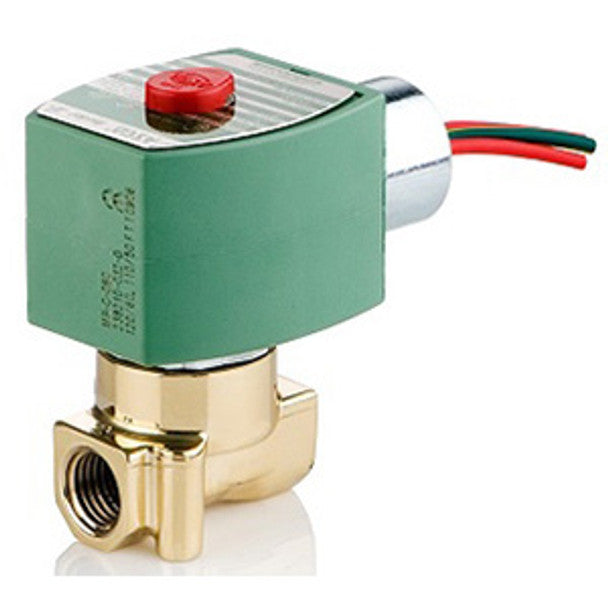

ASCO 8262H09024VDC Solenoid Valve 24 VDC 1/4 in. Female Threaded

Product Description

The ASCO 8262H09024VDC is a direct-acting solenoid valve designed for general service. This valve controls the flow of air, inert gas, water, and light oil. It has a brass body and 1/4 inch female threaded ports.

• Direct-acting valve design.
• Brass body construction.
• Suitable for multiple media types.

Product Highlights

The ASCO 8262H09024VDC is built to handle different fluids while maintaining reliability.

Product Information

Standard Information

• Brand: ASCO Valve
• MPN: 8262H09024VDC

Technical Specifications

• Body Material: Brass
• Input Voltage: 24 VDC
• Media Handled: Water, air, inert gas, light oil
• Port Connection: 1/4 in. Female Threaded x 1/4 in. Female Threaded
• Pressure Rating: 27 psi (Air), 23 psi (Water), 21 psi (Light Oil)
• Fluid Temperature: 180 °F
• Valve Position: Normally Closed (NC)
• Enclosure Rating: NEMA 1/2/3/3S/4/4X
• Product Family: Series 262/263
• Product Type: Solenoid Valves
• Valve Type: Direct-Acting
• Function: 2-Way/2-Position
• Seal Material: NBR
• Power Consumption: 10.6 W
• Approval: UL
