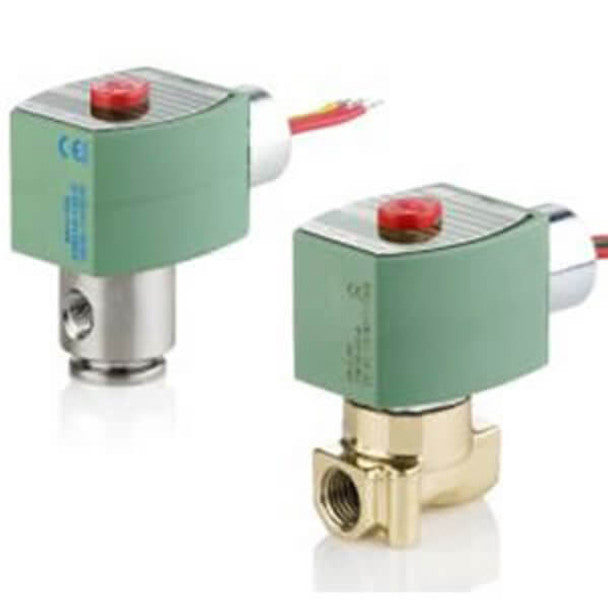

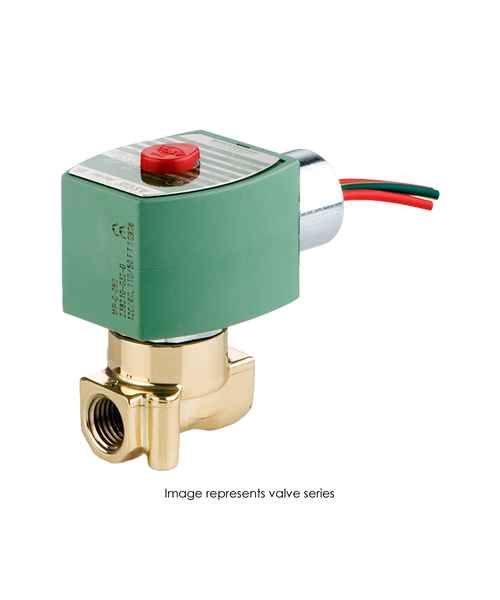

ASCO 8262H020 2-Way Normally Closed Solenoid Valve

Product Description

The ASCO 8262H020 is a reliable 2-way normally closed solenoid valve designed for various applications. This valve features a brass body with Buna N seals, ensuring durability and compatibility with different media types including air, inert gas, water, and light oil. With a pipe size of one-fourth inch and an orifice size of three thirty-seconds inch, this valve is suited for both general and specialty services.

• Brass body with Buna N seals
• Handles air, inert gas, water, and light oil
• Pipe size of one-fourth inch with a three thirty-seconds inch orifice

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: 8262H020
• Valve Operation: Normally Closed

Technical Specifications

• Valve Configuration: 2-Port / 2-Position
• Way Type: 2-Way
• Function: 2 way - 2/2 Normally Closed
• Body Material: Brass
• Seal Material: Buna N Elastomer
• Media Compatibility: Air, Inert Gas, Water, Light Oil
• Pipe Size: 1/4 inch
• Orifice Size: 3/32 inch
• Flow: 0.21 Cv
• Operating Pressure Rating (Air): Min: 0 psi, Max: 235 psi
• Max Media Temperature: 180 °F
• Voltage: DC 24 V
• Wattage: 10.6 W
• Enclosure Rating: NEMA rated
