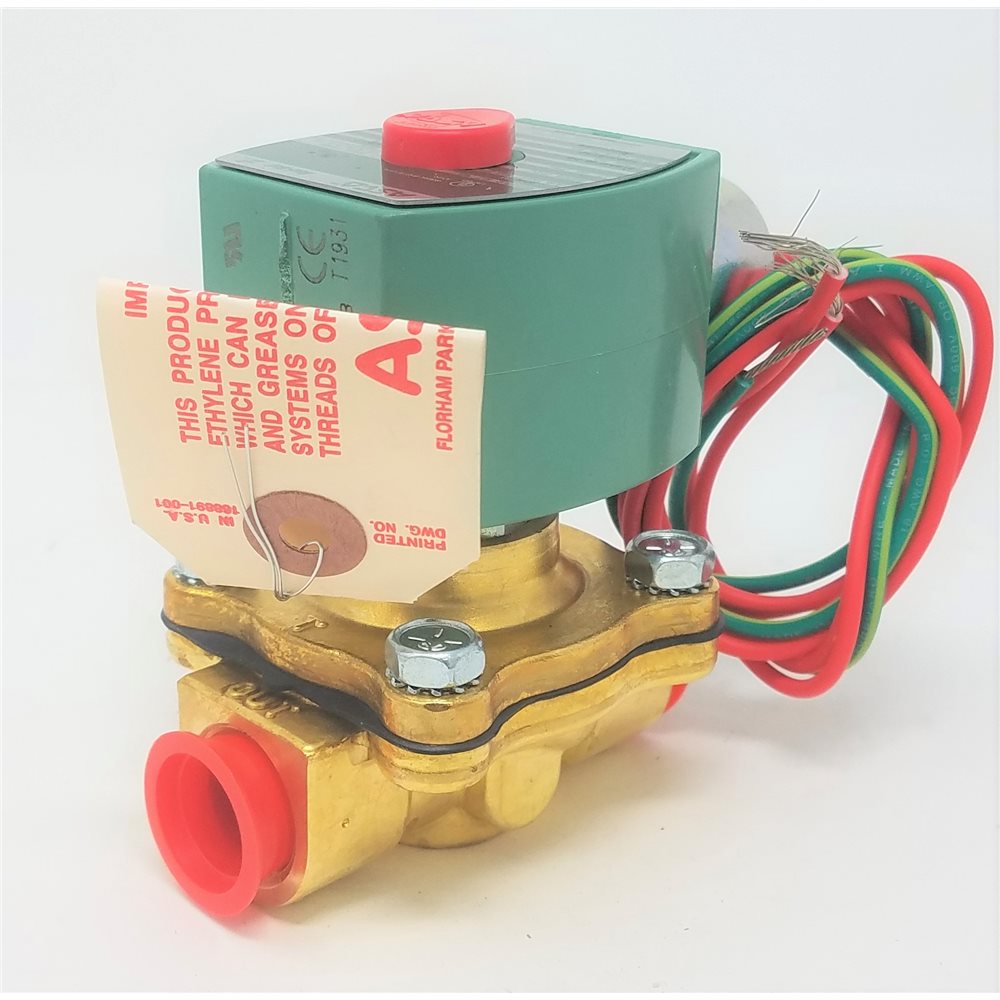

ASCO 8222G094120/60110/50 1/2in 120V 0-50# NC Steam Solenoid Valve Replacement MPN

Product Description

The ASCO 8222G094120/60110/50 is a 1/2 inch solenoid valve designed for steam control applications. This valve operates at 120 volts with a pressure range of zero to fifty psi and is rated as normally closed. It's suitable for various industrial uses.

• Pipe size: 1/2 inch
• Watt rating: 10.1
• Body material: Brass

Product Highlights

This solenoid valve is engineered for reliability and efficiency in steam applications.

Product Information

Standard Information

• Brand: ASCO
• Supplier Part Number: 8222G094 120/60 110/50

Technical Specifications

• Mode: Normally Closed
• Type: 2 Way
• Coil Voltage: 120/60 110/50
• Lead Length: 18 inches
• Max Fluid Temperature: 300 degrees Fahrenheit
• Min Fluid Temperature: 32 degrees Fahrenheit
• Max Ambient Temperature: 125 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
• Orifice Size: 5/8 inch
• Shading Ring: Copper
• Coil Class: Class F
• Holding Current (VA): 25
• Inrush Current (VA): 70
• Carton Notes: RPLS 8222B94 INC PRFX FT,GS,R
• Rebuild Kit Number: 304031
• Mounting Direction: Any
