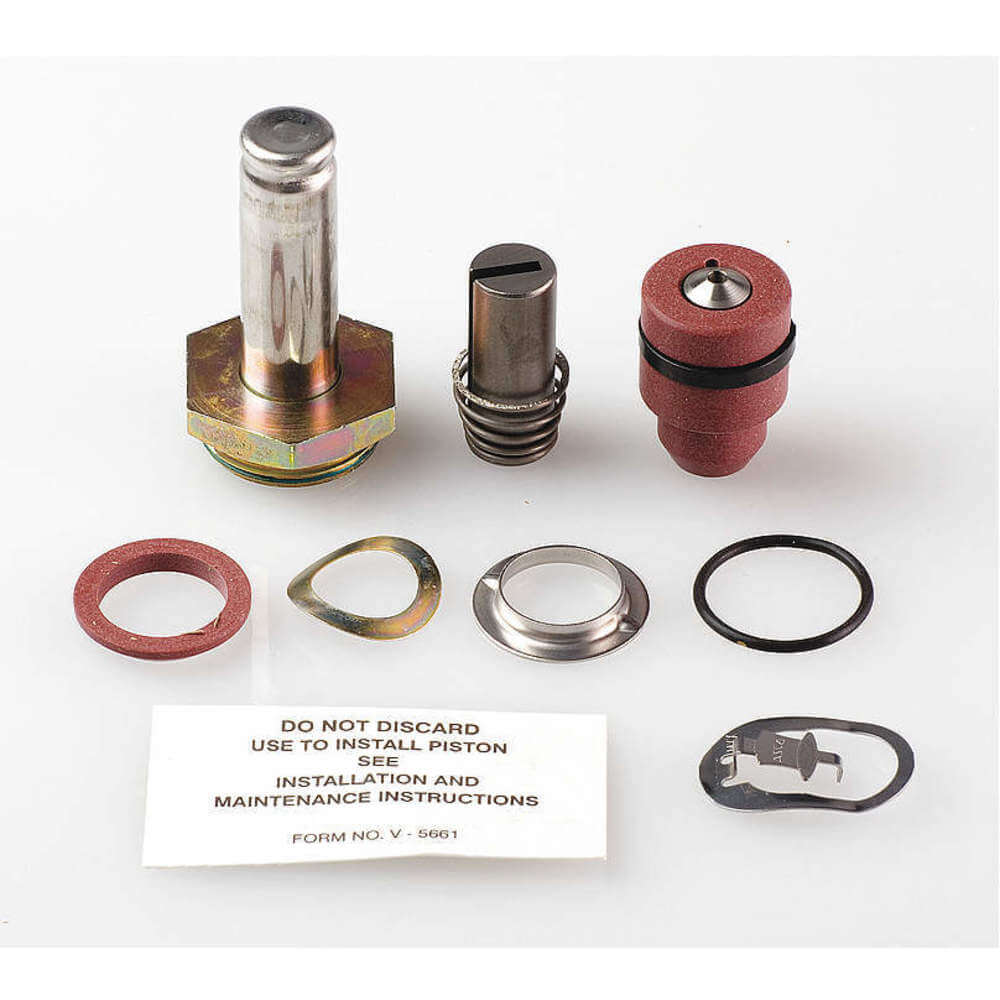

ASCO 8222G049120/60110/50 3/4in 120V NC Steam 2# Min 125# Max

Product Description

The ASCO 3/4in 120V NC steam valve, model 8222G049120/60110/50, is designed for efficient operation in steam applications. It serves as a two-way valve with a normally closed feature, ideal for controlling steam flow. This valve operates between two psi and can handle a maximum of one hundred twenty-five psi. It is suitable for various industrial and commercial settings.

• Pipe size: three-fourths inches
• Watt rating: ten point one
• Housing type: Nema 4X

Product Highlights

This valve is built from durable brass and features PTFE seat material for reliable sealing. With an inrush current of seventy VA and a holding current of twenty-five VA, it offers effective control of steam flow in numerous applications.

Product Information

Standard Information

• Model: 8222
• Options: Steam

Technical Specifications

• Cv: 4.6
• Coil voltage: 120/60 110/50
• Lead length: 18 inches
• Max fluid temperature: 353 degrees
• Min fluid temperature: 32 degrees
• Max ambient temperature: 125 degrees
• Min ambient temperature: 32 degrees
• Body material: Brass
