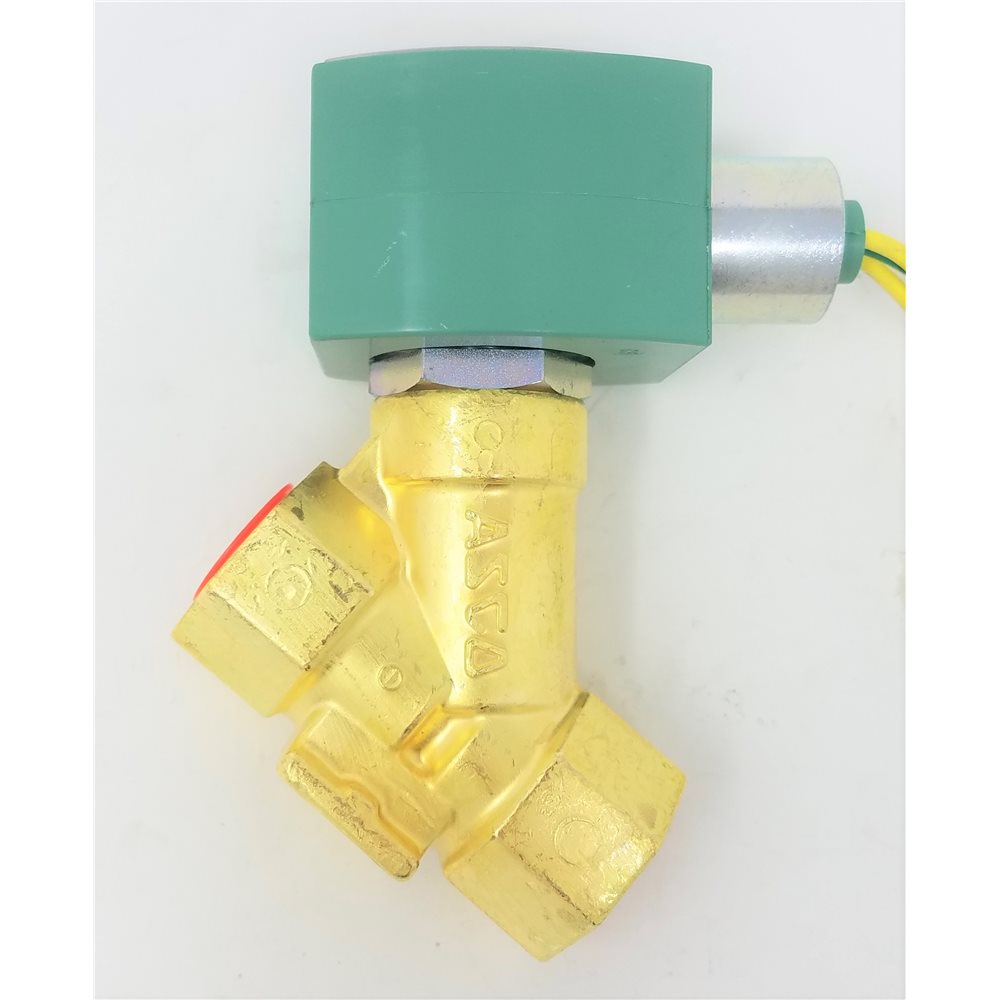

ASCO 8222G047120/60110/50 1/2in 120v Steam Valve

Product Description

The ASCO 8222G047120/60110/50 is a 1/2 inch steam valve designed for efficient control of steam flow in HVAC systems. With a voltage rating of 120 volts for sixty hertz or 110 volts for fifty hertz, this valve is built for durability and reliable performance.

• Normally closed operation
• Brass body material

• Compatible with steam applications

Product Highlights

This valve is essential for HVAC technicians managing steam systems. It ensures consistent operation and helps maintain system integrity.

Product Information

Standard Information

• Type: 2 Way
• Pipe Size: 1/2 inch

Technical Specifications

• Series: 8222
• Coil Class: Class H
• Maximum Steam Temperature: 353 degrees Fahrenheit
• Minimum Ambient Temperature: 32 degrees Fahrenheit
• Maximum Ambient Temperature: 125 degrees Fahrenheit
• Max Fluid Temperature: 353 degrees Fahrenheit
• Inrush Current (VA): 70
• Holding Current (VA): 25
• Orifice Size: 1/2 inch
• Body Material: Brass
• Seat Material: PTFE
