ASCO 8220G411120/60110/50 1in 120V Steam 5# Min 125# Cv=13.5 NC

Product Description

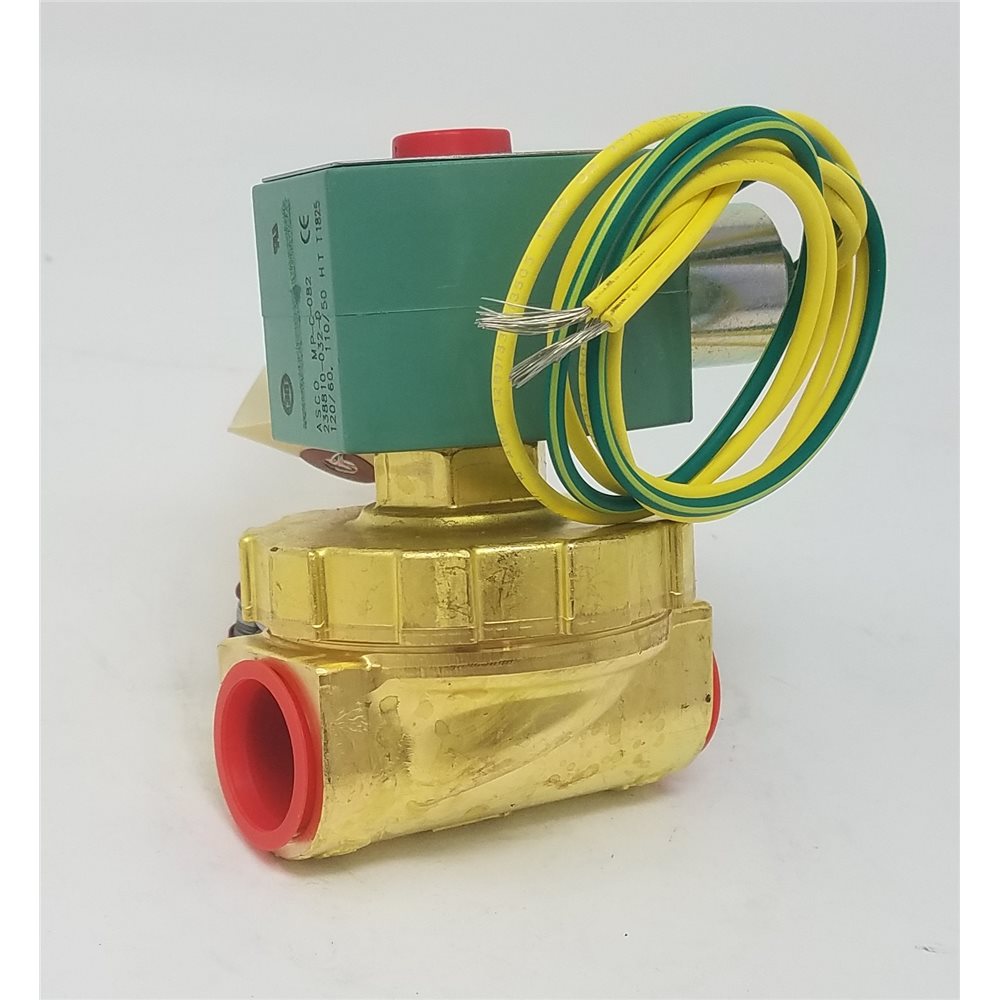

The ASCO 8220G411120/60110/50 is a one-inch solenoid valve designed for steam applications. This product operates at 120 volts and is ideal for controlling steam flow in various systems.

• Valve Type: Normally Closed.
• Pipe Size: One inch.
• Maximum Fluid Temperature: Two hundred ten degrees Fahrenheit.

Product Highlights

The ASCO solenoid valve features a durable brass body and PTFE seat material for reliable performance.

Product Information

Standard Information

• Coil Voltage: 120/60 110/50
• Watt Rating: 10.1

Technical Specifications

• Item Weight: 5.25 lbs per EA
• Max Fluid Temperature: 210
• Min Fluid Temperature: 32
• Orifice Size: 1
• Pipe Size: 1
• Coil Class: Class H
• Mounting Direction: Any
• Body Material: Brass
