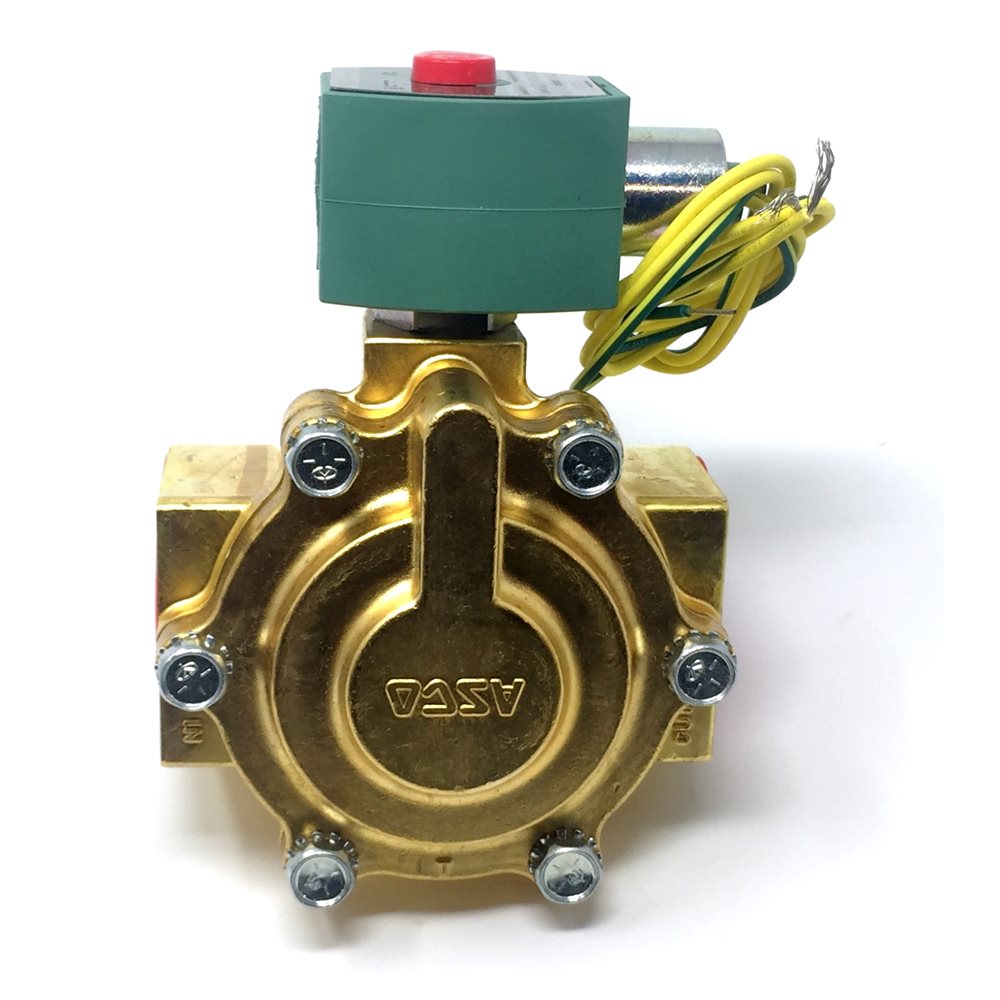

ASCO 8220G029120/60110/50 1.5in 120V Steam 5# Min 125# Max Cv=22.5

Product Description

The ASCO 8220G029120/60110/50 is a solenoid valve designed for steam applications. It features a compact size of one and a half inches and operates at 120 volts. This valve can handle a minimum pressure of five pounds and a maximum pressure of one hundred twenty-five pounds, with a flow coefficient (Cv) of twenty-two point five. The valve is normally closed, making it ideal for controlling steam flow.

• Pipe size: 1-1/2 inches
• Coil voltage: 120/60 110/50
• Watt rating: 10.1 watts

Product Highlights

This ASCO solenoid valve is constructed of durable brass and features an EPDM seat material. The Nema 4X housing ensures it is protected against environmental factors while operating in various conditions. It is suitable for a range of applications including commercial and industrial steam systems.

Product Information

Standard Information

• Brand: ASCO
• Part Number: 8220G029120/60110/50

Technical Specifications

• Cv: 22.5
• Type: 2 Way
• Pipe Size: 1-1/2 inches
• Coil Class: Class H
• Item Weight: 7.25 lbs per unit
• Max Fluid Temperature: 210 degrees Fahrenheit
• Min Fluid Temperature: 32 degrees Fahrenheit
• Mounting Direction: Any
