ASCO 8220G027120/60110/50 120V Steam 1.25in 5# Min 125# Max

Product Description

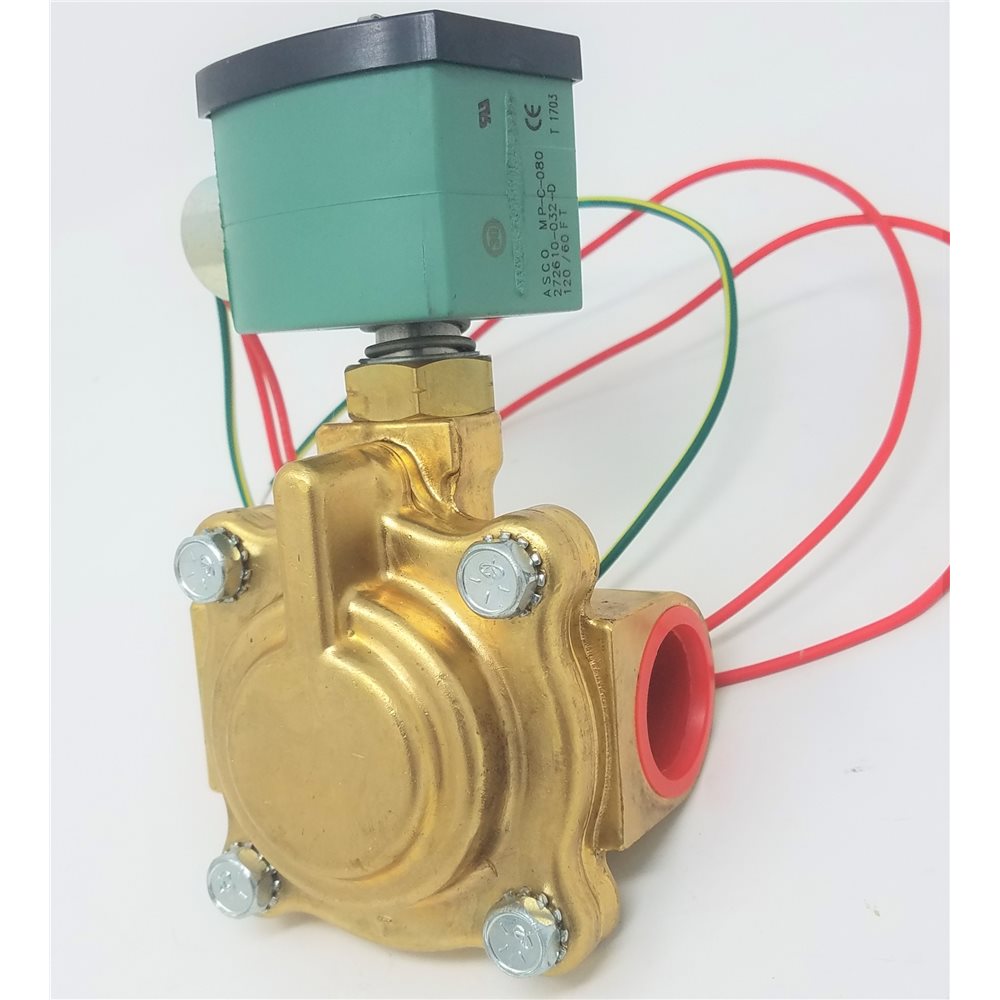

The ASCO 8220G027120/60110/50 is a 1.25-inch, 120V steam solenoid valve designed for durability and performance. It operates at a minimum of five pounds and a maximum of one hundred twenty-five pounds of pressure. The valve has a flow coefficient (Cv) of fifteen, ensuring efficient fluid control.

• Maximum fluid temperature: two hundred ten degrees Fahrenheit
• Normally closed operation for enhanced safety
• Constructed from brass with an EPDM seat material

Product Highlights

This solenoid valve is ideal for steam applications. It is suitable for various installations requiring reliable operation and compatibility with a range of mechanical systems.

Product Information

Standard Information

• Brand: ASCO
• Model: 8220

Technical Specifications

• Coil Class: Class H
• Pipe Size: 1-1/4 inches
• Orifice Size: 1-1/8 inches
• Lead Length: eighteen inches
• Inrush Current (VA): seventy
• Holding Current (VA): twenty-five
• Max Ambient Temperature: one hundred twenty-five degrees Fahrenheit
• Min Ambient Temperature: thirty-two degrees Fahrenheit
