ASCO 8220G007120/60110/50 1in NPT Valve

Product Description

The ASCO 8220G007120/60110/50 is a two-way normally closed solenoid valve designed for various applications. This valve features a one-inch NPT connection and operates on a coil voltage of one hundred twenty volts at sixty hertz or one hundred ten volts at fifty hertz.

• Pipe Size: One inch NPT
• Max Fluid Temperature: Two hundred ten degrees Fahrenheit
• Body Material: Brass with EPDM seat

Product Highlights

This valve is suited for steam and water applications and is compatible with various mounting directions.

Product Information

Standard Information

• Minimum Differential Pressure: Five PSI
• Watt Rating: Ten point one watts

Technical Specifications

• Series: 8220
• Mode: Normally Closed
• Options: Steam
• Coil Class: Class F
• Lead Length: Eighteen inches
• Inrush Current: Seventy VA
• Holding Current: Twenty-five VA
• Max Ambient Temperature: One hundred twenty-five degrees Fahrenheit
• Min Ambient Temperature: Thirty-two degrees Fahrenheit
• Shading Ring: Copper

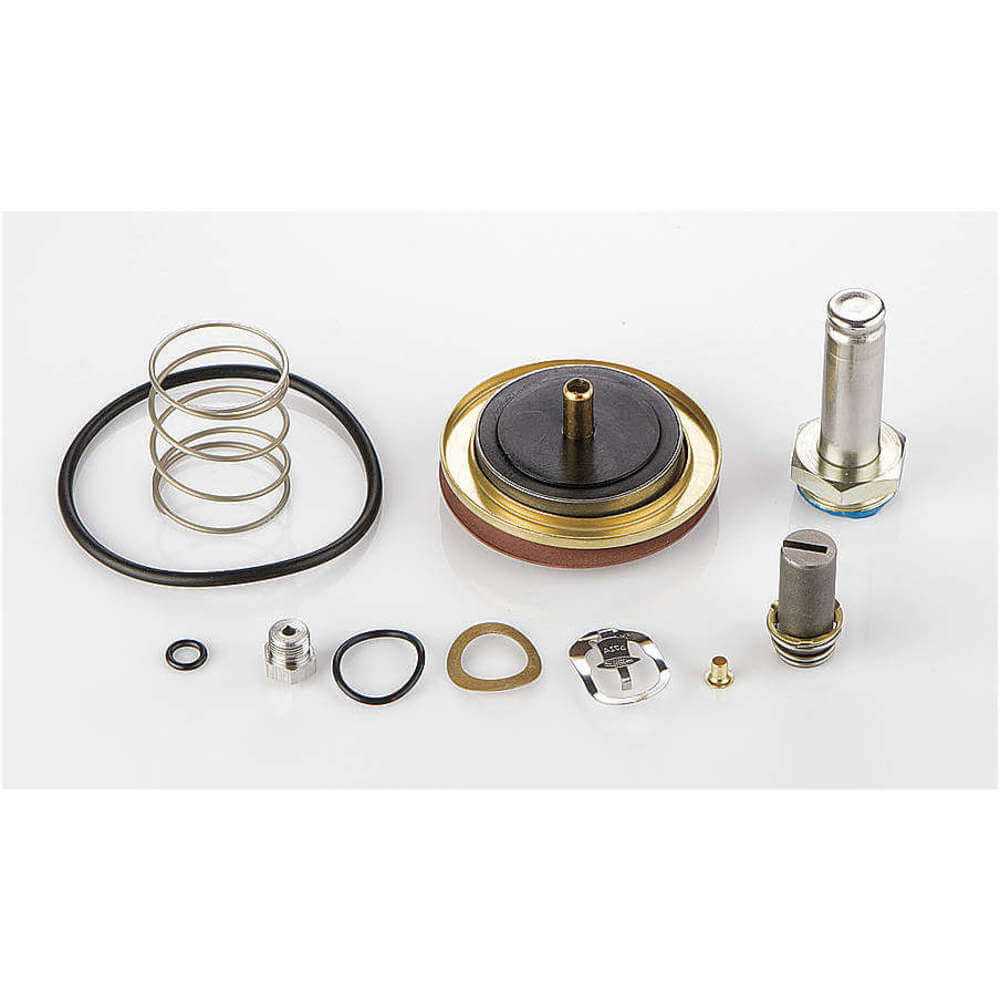

• Rebuild Kit Number: 304394
