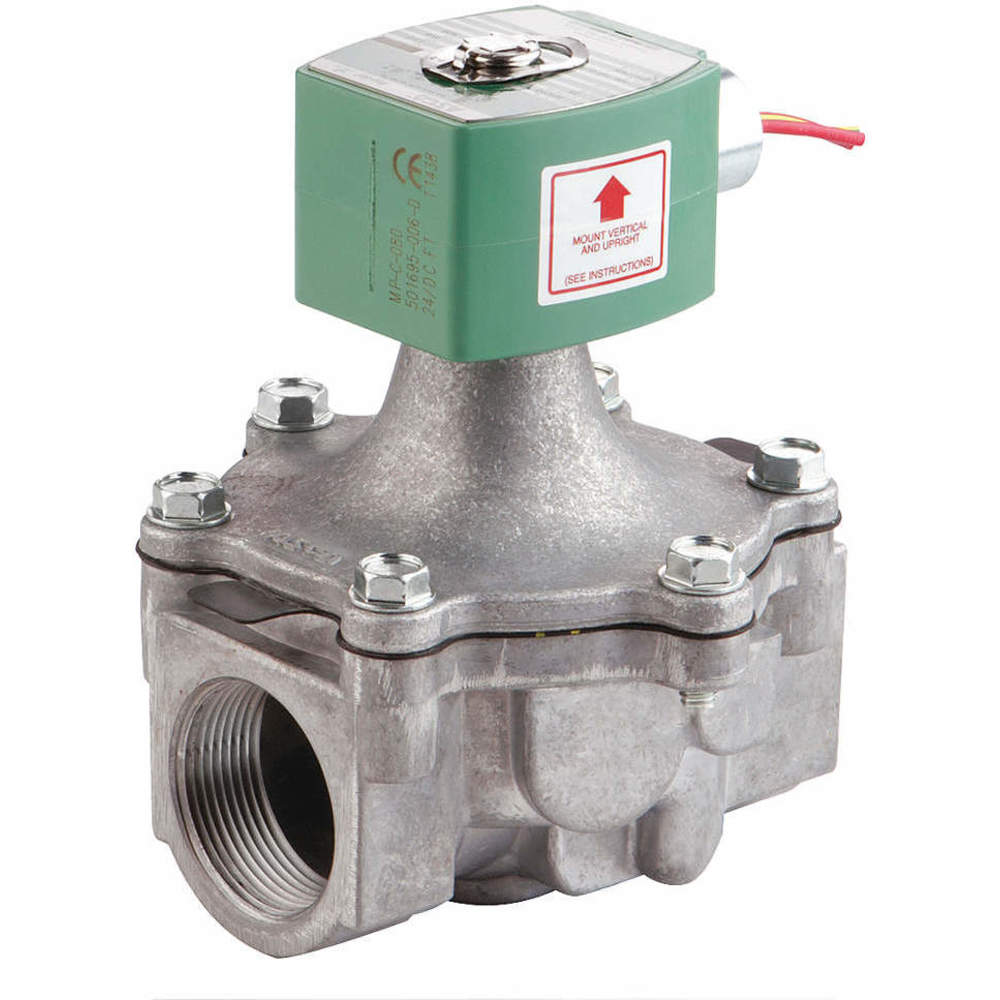

ASCO 8215G050-12 Fuel Gas Solenoid Valve

Product Description

The ASCO 8215G050-12 is a one-inch fuel gas solenoid valve made for heating and vacuum applications. This valve operates in a normally closed configuration and provides a high flow capability with a volume coefficient of twenty-one.

• Constructed with an aluminum body for durability.
• Operates at twelve volts DC with a power of thirty-five point one watts.
• Meets various environmental protection standards including NEMA ratings one through four.

Product Highlights

This valve is essential for managing fuel gas in heating systems and complies with relevant safety standards.

Product Information

Standard Information

• Item: Fuel Gas Solenoid Valve
• Operation Type: Direct Acting

Technical Specifications

• Ambient Temperature Range: +32°F to +77°F
• Body Material: Aluminum
• Coefficient Of Volume: 21
• Max Fluid Temperature: 104°F
• NEMA Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
• Overall Height: 6.703 inches
• Overall Length: 5 inches
• Overall Width: 5.406 inches
• Pipe Size: 1 inch
• Seal Material: Buna N
• Response Time: 120 ms
• Standards: CSA, FM, UL LISTED
