ASCO 8215G020-24VDC Solenoid Valve - 1/2 N/C

Product Description

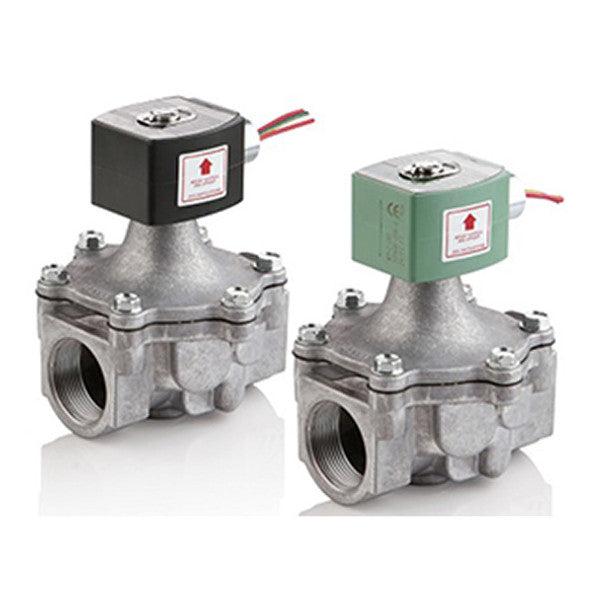

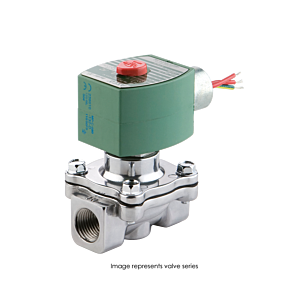

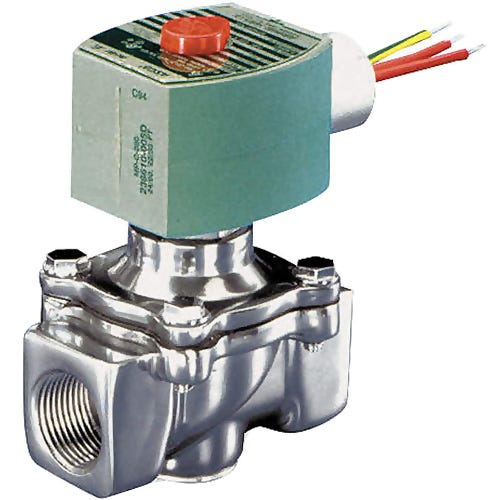

The ASCO 8215G020-24VDC is a solenoid valve designed for various applications including air, inert gas, and fuel gas. This model features a 1/2-inch port connection and operates under 24 VDC. The aluminum body and NBR sealing components ensure durability and reliability in operation. This valve is typically utilized for general service and in safety shut-off functions.

• 1/2-inch port connection.
• Constructed with aluminum and NBR seal materials.
• Operates effectively within an ambient temperature range of 32 to 104 degrees F.

Product Highlights

Ideal for use in dust collector systems and other applications requiring a dependable solenoid valve.

Product Information

Standard Information

• Valves Type: Semi-Direct Acting
• Body Material: Aluminum

Technical Specifications

• Seal Material: NBR
• Pipe Size: 1/2
• Orifice Size: 3/4
• Pressure (PSI): Min: 0, Max: Air=50
• Maximum Media Temperature: 125 degrees F
• Voltage: DC 24 V
• Application: Dust Collector System
• Maximum Temperature: 125 degrees F
