Asco 8215G020 24/60 0.5 inch 2W NC 24VAC 8215G20

Product Description

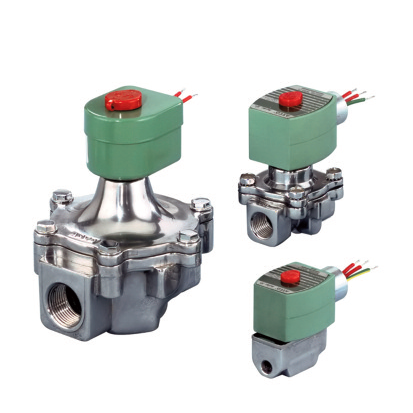

The ASCO 8215G020 24/60 is a 0.5 inch 2-way normally closed air-fuel gas shutoff valve designed for reliable operation. Featuring an aluminum body and NBR seals, this valve has a Cv of 3.4 and a gas capacity of 238,500 BTU/hr. It operates at 24VAC with a 10.1 watt rating and is housed in a Nema 4X enclosure, suitable for various environments. It handles pressures from 0-50 PSI for air and gas.

• 0.5 inch, 2-way, normally closed design for air-fuel gas shutoff applications.
• Durable aluminum body with NBR seals and Nema 4X enclosure for environmental protection.
• Features a 3.4 Cv flow rate and 238,500 BTU/hr gas capacity, operating at 24VAC.

Product Highlights

This ASCO 8215G020 24/60 valve provides efficient and safe air-fuel gas shutoff with robust construction and Nema 4X protection.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8215G020 24/60

Technical Specifications

• Cv: 3.4
• Mode: Normally Closed
• Type: 2 Way
• Series: 8215
• Max Air Pressure: 50 PSI
• Max Gas Pressure: 50 PSI
• Pipe Size: 1/2"
• Coil Class: F
• Coil Number: 238610-005-D
• Lead Length: 18
• Watt Rating: 10.1
• Coil Voltage: 24/60
• Housing Type: Nema 4X
• Shading Ring: Copper
• Body Material: Aluminum
• Seat Material: NBR
• Mounting Direction: Any
• Rebuild Kit Number: 302350
• Holding Current: 25 VA
• Gas Capacity: 238,500 BTU/hr
• Max Fluid Temperature: 125
• Min Fluid Temperature: 32
• Min Differential Pressure: 0 PSI
• Max Ambient Temperature: 125
• Min Ambient Temperature: 32
• Alternate Part Number: 8215G20, 8215G20 24/60, 8215G2024/60
• Valve Actuation: Solenoid
• Compatible Media: Air, Inert Gas, Liquid Propane Gas, Natural Gas, Oxygen
• Port Type: NPTF
• Max Operating Pressure: 50 PSI
• Operating Environment: Hazardous, Indoor, Outdoor
• Certifications: CSA, FM, UL
• Hazardous Location Rating: Class I Div 1, Class I Div 2, Class II Div 1, Class II Div 2
