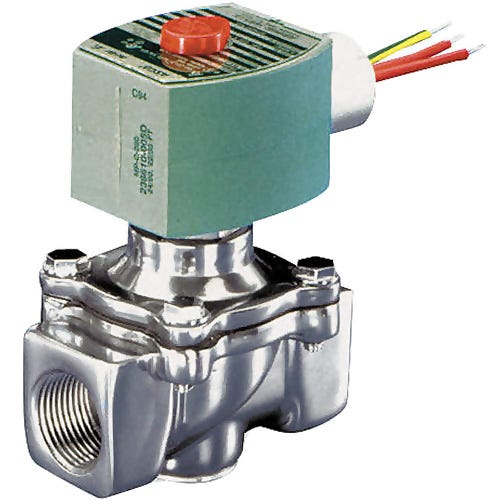

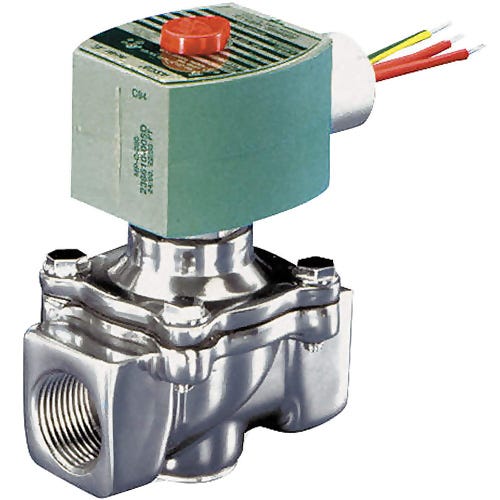

Asco 8215G020 2-way N/c Solenoid Valve 1/2 Inch Npt

Product Description

The ASCO 8215G020 AC 120/60,110/50 D is a 2-way, normally closed solenoid valve designed for air, inert gas, and fuel gas service. It operates on AC line power at 120/60 VAC or 110/50 VAC and features a 1/2 inch NPT pipe connection with a Cv flow coefficient of 4.4. The valve body is aluminum construction with a Buna N seal, and it handles media temperatures up to 125 degrees F at pressures from 0 to 50 psi. Licensed HVAC technicians, gas fitters, and industrial service technicians are the primary installers of this type of valve in fluid and gas control applications.

This valve is suited for residential and light commercial systems where controlled shutoff of air, inert gas, or fuel gas is required. Typical applications include gas control circuits, pneumatic systems, and HVAC equipment where a normally closed position at rest is the required fail-safe condition. The NEMA 1, 2, 3, 3S, 4, and 4X enclosure ratings make it appropriate for both indoor and outdoor installations with varying levels of environmental exposure.

Key Features

• 2-way normally closed operation provides fail-safe shutoff when de-energized
• Dual-voltage coil accepts 120/60 VAC or 110/50 VAC AC line power
• 1/2 inch NPT connection with Cv of 4.4 for reliable flow in gas and air circuits
• Aluminum body with Buna N seal rated for air, inert gas, and fuel gas compatibility
• Pressure range of 0 to 50 psi and max media temperature of 125 degrees F
• NEMA 1, 2, 3, 3S, 4, and 4X enclosure ratings for versatile installation environments

Compatibility

Designed for air and inert gas service as well as fuel gas applications requiring a 1/2 inch NPT normally closed solenoid valve operating on 120/60 VAC or 110/50 VAC AC line power.

Installation Notes

Installation should be performed by a licensed technician familiar with gas piping or fluid control systems and applicable local codes including IFGC requirements for fuel gas applications. Shut off all gas or air supply and de-energize the circuit before replacing or servicing the valve. Verify pipe thread engagement and use appropriate thread sealant rated for the media type. Do not exceed the rated pressure range of 50 psi or the maximum media temperature of 125 degrees F during operation.

Technical Specifications

• Valve Type: 2-Way Normally Closed
• Supply Voltage: 120/60 VAC, 110/50 VAC
• Power Supply: AC Line Power
• Pipe Size: 1/2 inch
• Connection Type: NPT
• Cv: 4.4
• Pressure Range: 0 to 50 psi
• Max Media Temperature: 125 degrees F
• Body Material: Aluminum
• Seal Material: Buna N
• Media Compatibility: Air, Inert Gas, Fuel Gas
• Enclosure Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8215G020 AC 120/60,110/50 D
