Asco 8215B050CSA 24/60VAC 1 inches NPT. N.C. 2 Way Aluminum Body Solenoid Valve 1119000 BTU

Product Description

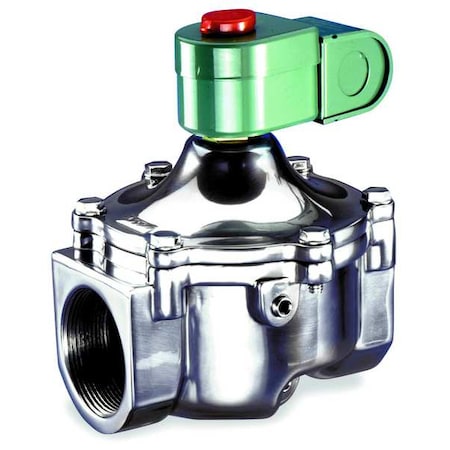

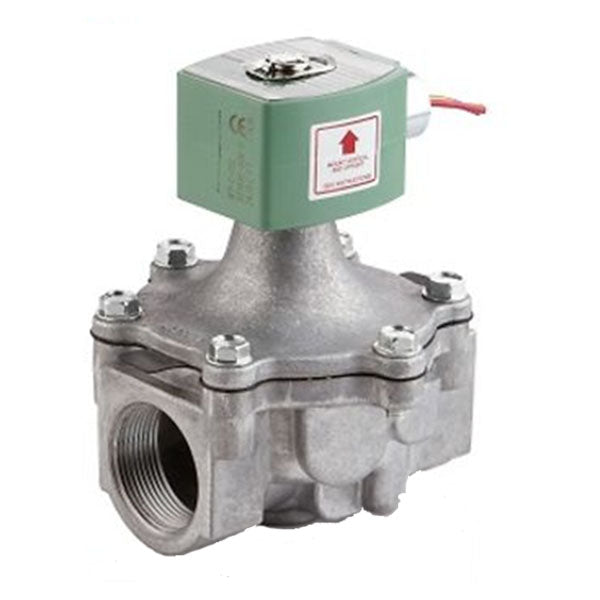

The ASCO 8215B050CSA is a 2-Way aluminum body solenoid valve designed for air and fuel gas applications. This valve features a 1" NPT connection and operates as normally closed. It is suitable for both indoor and outdoor environments. The valve is rated for a maximum operating pressure differential of 25 psi and provides a flow coefficient of 21.

• Lightweight, low-cost valves for air service
• Ideal for low pressure applications
• Provides high flow, Cv up to 138 (Kv118)
• Air and vacuum service

Product Highlights

This ASCO solenoid valve is ideal for controlling air and fuel gas in various applications, offering reliable performance and efficient operation.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8215B050CSA
• Country of Origin: Mexico

Technical Specifications

• Hz: 50/60
• Item: Air and Fuel Gas Solenoid Valve
• Media: Air/Fuel Gas
• Watts: 15.4 W
• Voltage: 120V AC
• Pipe Size: 1"
• Standards: CSA, UL
• Application: Air and Vacuum Service
• NEMA Rating: 1
• Orifice Dia.: 1 5/8 in
• Valve Design: 2-Way/2-Position
• Body Material: Aluminum
• Overall Width: 5 3/8 in
• Seal Material: NBR
• Coil Enclosure: General Purpose No Junction Box
• Overall Height: 6 13/16 in
• Overall Length: 5 in
• Max. Fluid Temp.: 125 Degrees F
• Ambient Temp. Range: 32 Degrees to 125 Degrees F
• Valve Configuration: Normally Closed
• Coefficient of Volume: 21
• Coil Insulation Class: F
• Electrical Connections: 1/2" Conduit w/18" Leads
• Valve Ways and Positions: 2-Way/2-Position
• Environmental Rating - Valves: Indoor, Outdoor
• Max. Operating Pressure Differential: 25 psi
• Min. Operating Pressure Differential: 0 psi
• Max. Operating Pressure Differential Water: 25 psi
• Max. Operating Pressure Differential Air/Inert Gas: 25 psi
• Operating Pressure Rating: Min: 0 psi
• Max: 25 psi
• Manufacturer: Emerson Electric Co.
• Brand: ASCO
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
• Series: 8215 Series
