Asco 8215B050 120V valve 1 NPT

Product Description

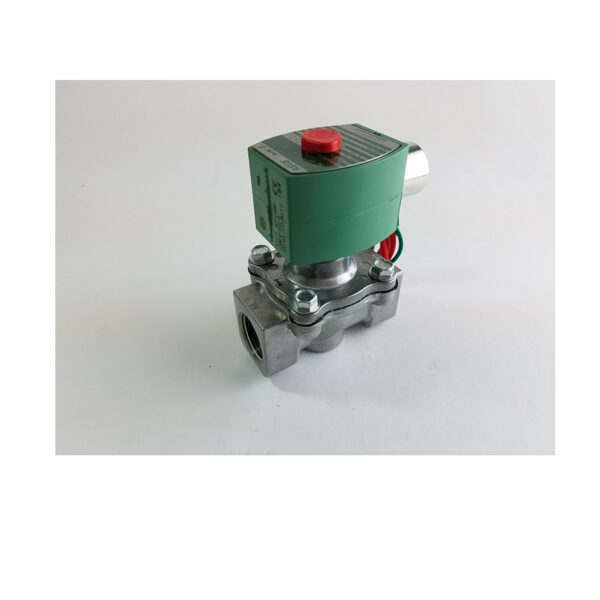

The ASCO 8215B050 120V is a two-way valve with a 1 NPT connection, designed for air and vacuum service. It features an aluminum body and Buna N seal material. This valve is suitable for applications requiring high flow and is ideal for low-pressure environments. It is commonly used in sterilizers, laundry equipment, and boilers.

• Available in 3/8" to 2-1/2" pipe sizes
• Two-way, normally open or normally closed
• Threaded bonnet removes easily for quick inspection and service, reduces downtime and maintenance costs

Product Highlights

This valve provides high flow and is ideal for low-pressure applications, with approvals including UL and FM.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8215B050 120V

Technical Specifications

• Max Media Temperature: 125 °F
• Media Compatibility: Air-Inert Gas,Fuel Gas
• Power Supply: AC Line Power
• Type: Two Way
• Connection: NPT
• Valve Operation: Normally Closed
• Orifice Size: 1.625 in
• Is FM: true
• Gas Capacity: 1,119,000 BTU/Hr
• Solenoid Coil: 099257-001-D
• Solenoid Kit: 302352
• Enclosure Rating: NEMA 1
• Body Material: Aluminum
• Approvals: UL,FM
• Cv: 21
• Pipe Size: 1 in
• Wetted Materials: Aluminum, Buna N
• Pressure Range: 0 - 25 PSI
• Supply Voltage (Nominal): 120/60 VAC
• Function: Air and Vac Service
• Seal Material: Buna N
